Removing Temperature Sensor

1. Remove temperature sensor -1-  in the air duct at the left.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

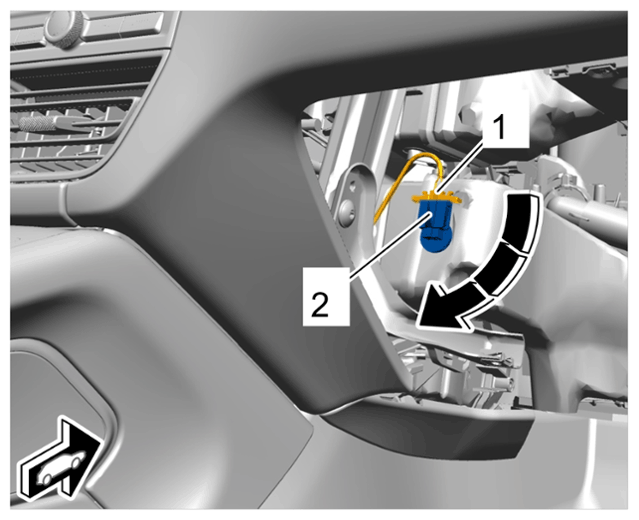

   Temperature sensor (left)

   1. 1.1 Release and disconnect electric plug connection -2-  .
   2. 1.2 Turn temperature sensor -1-  90° anti-clockwise and remove it.
2. Remove temperature sensor -2-  in the air duct at the right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

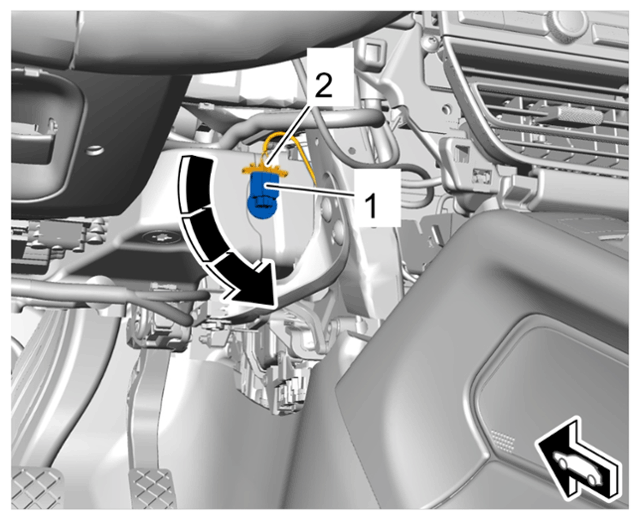

Temperature sensor (right)

1. 2.1 Release and disconnect electric plug connection -1-  .
2. 2.2 Turn temperature sensor -2-  90° clockwise and remove it.
