Installing Refrigerant Line Between Compressor And Condenser - Rear Section

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Replace O-rings on the line connections.

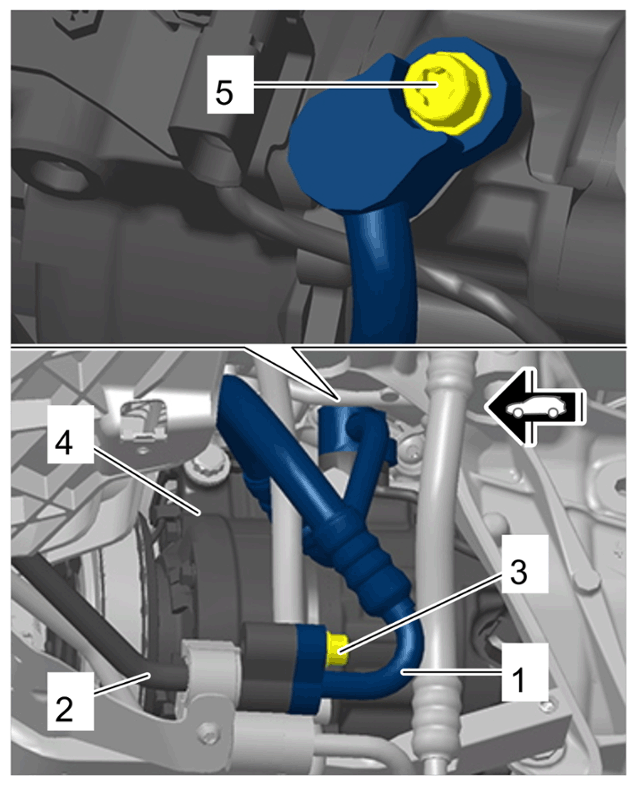

   2. 1.2 Tighten screw securing line connection to compressor -5-  .

      > Tightening - torque 20 Nm (15 ftlb.)

   3. 1.3 Tighten screw on connection point -3-  .

      > Tightening - torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front section - compressor/condenser line
