Installing Refrigerant Line Between Compressor And Condenser - Front Section

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Replace O-rings on the line connections.
   2. 1.2 Tighten screw on connection point -3-  .

      > Tightening - torque 8 Nm (6 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

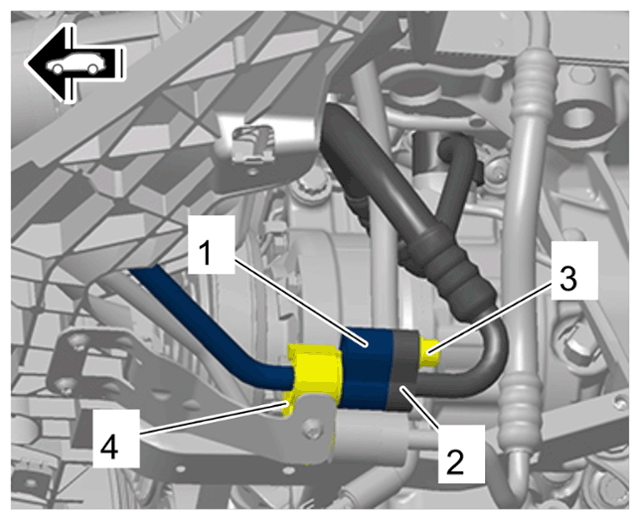

      Connection point for front/rear sections - compressor/condenser line

   3. 1.3 Tighten screw securing line connection to condenser -2-  .

      > Tightening - torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

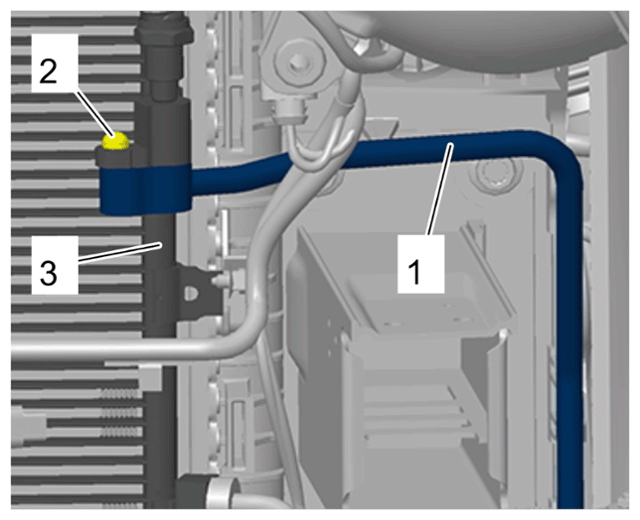

Rear section - compressor/condenser line
