Removing Air Quality Sensor

1. Remove air inlet housing cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

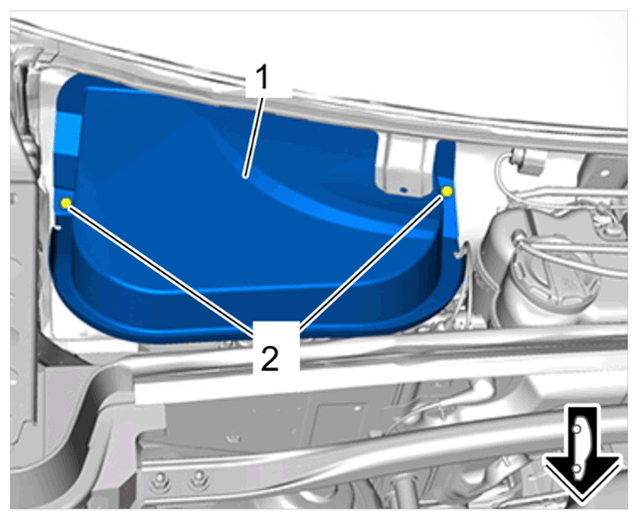

   Air inlet housing cover

   1. 1.1 Unscrew nuts -2-  .
   2. 1.2 Remove air inlet housing cover -1-  .
2. Turn air quality sensor clockwise -Arrow-  and remove it by pulling it to the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air quality sensor mounting point

3. Release electric plug connection -1-  and disconnect it from the air quality sensor -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

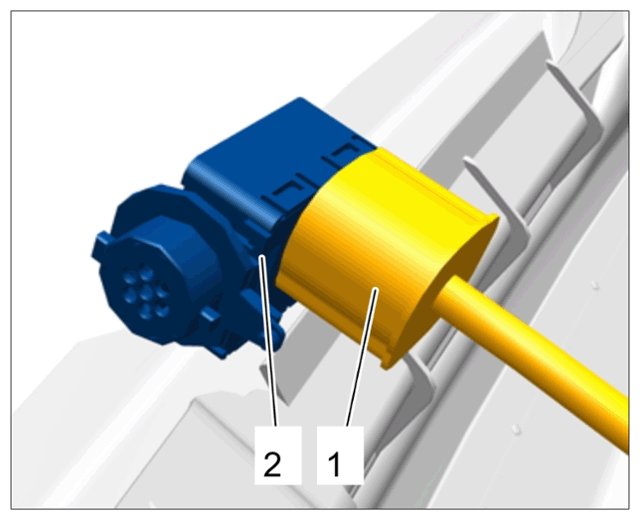

Electric plug connection on air quality sensor
