Removing Servo Motor For Ram Air

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

1. Remove servo motor for ram air -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

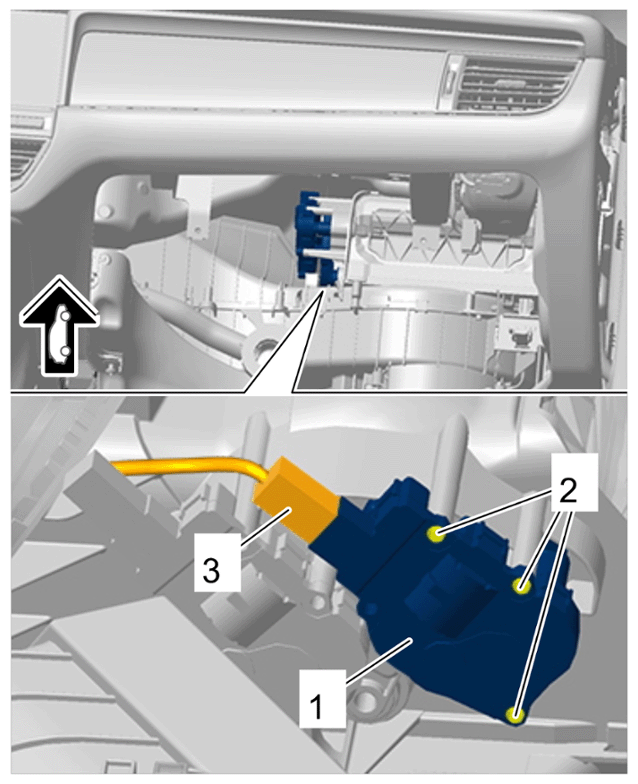

Servo motor for ram air

Unscrew and remove screws -2-  .

Pull servo motor for ram air -1-  off the heating/fresh-air unit so that the electric plug connection -3-  is accessible.

Release and disconnect electric plug connection -3-  .

Remove servo motor for ram air -1-  .
