Installing Servo Motor For Ram Air

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten screws -2-  .

    > Tightening - torque 1 Nm (0.5 ftlb.)

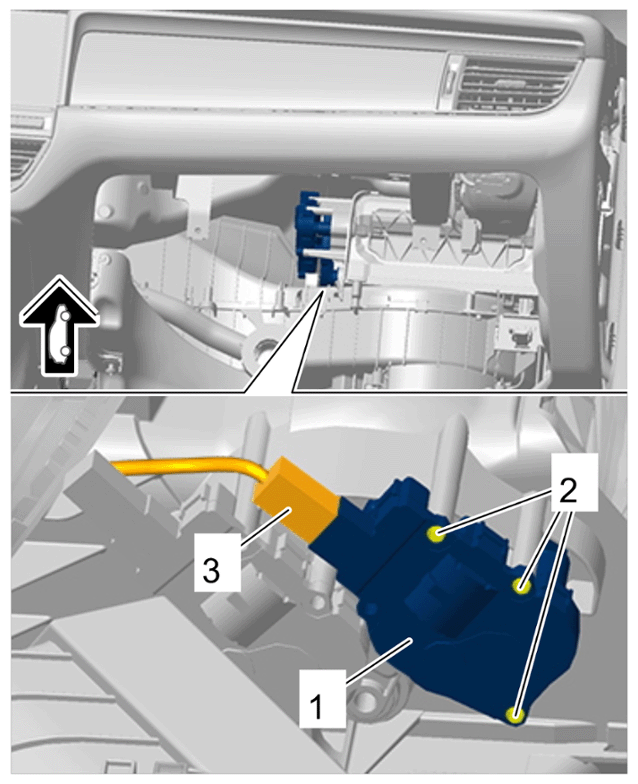

    G15161750Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor for ram air
