Installing Servo Motor For Front Left Temperature Valves

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Tighten screws -3-  .

      > Tightening - torque 1 Nm (0.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

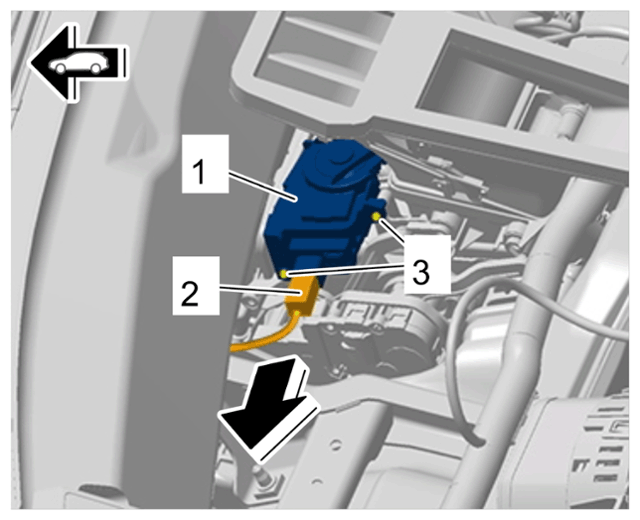

Servo motor for front left temperature valves
