Removing Servo Motor For Front Left FOOTWELL

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

1. Remove servo motor for front left footwell -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

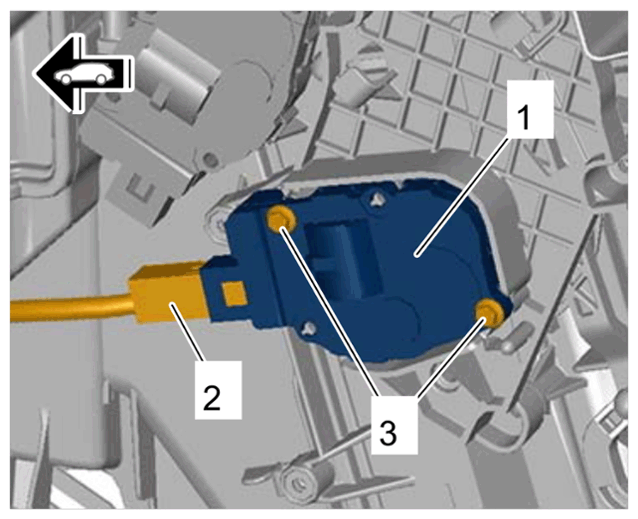

Servo motor for front left footwell

1. 1.1 Release and disconnect electric plug connection -2-  .
2. 1.2 Unscrew and remove screws -3-  .
3. 1.3 Remove servo motor for front left footwell -1-  .
