Removing Servo Motor For Defroster

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

1. Remove servo motor for defroster -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

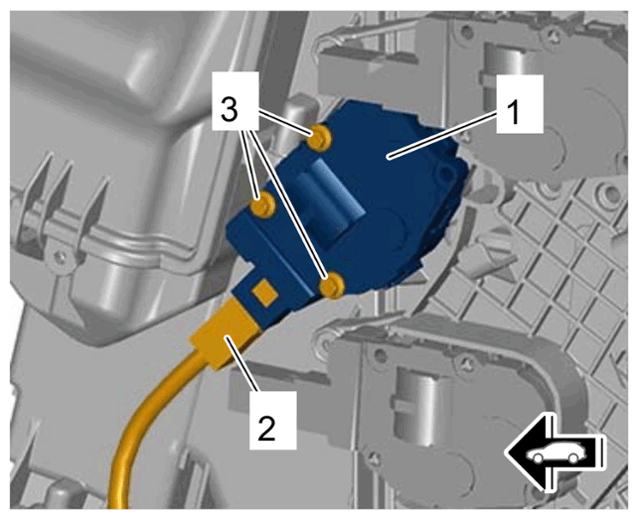

   Servo motor for defroster

   1. 1.1 Release and disconnect electric plug connection -2-  .
   2. 1.2 Unscrew and remove screws -3-  .
   3. 1.3 Remove servo motor for defroster -1-  .
