Overview Of Servo Motors

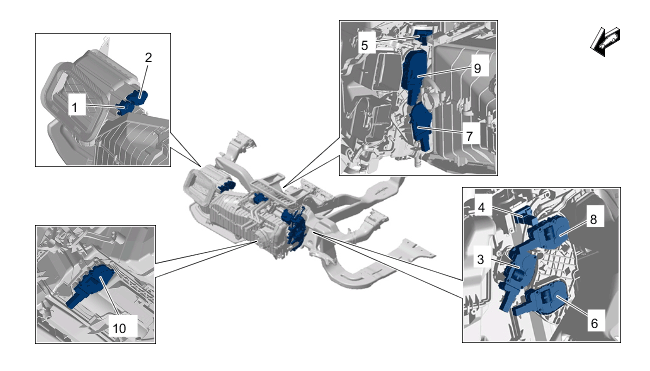

Overview of servo motors
| 1 | Servo motor for fresh air/recirculated air |
| 2 | Servo motor for ram air |
| 3 | Servo motor for defroster |
| 4 | Servo motor for front left temperature valves |
| 5 | Servo motor for front right temperature valves |
| 6 | Servo motor for front left footwell |
| 7 | Servo motor for front right footwell |
| 8 | Servo motor for left centre vent |
| 9 | Servo motor for right centre vent |
| 10 | Servo motor for rear temperature valve |
