Removing Rear Centre Air Jet: Notes

  1. Remove rear centre air vent -1-  from covering frame for centre console -2-  .

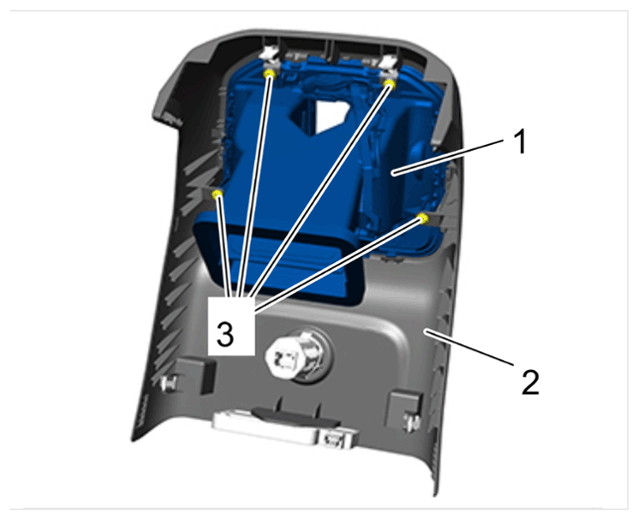

    G15162097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear centre air vent

    1. 1.1  Unscrew and remove screws -3-  .
    2. 1.2  Remove rear centre air vent -1-  .
