Removing Fuel Line (From Rear Underbody To Fuel Pump)

Information

Plastic lines must not be kinked or bent as this can make them brittle and start to leak.

1. Have suitable aids ready for collecting emerging fuel.
2. Have suitable stoppers ready for closing off the line connections.
3. Remove fuel line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

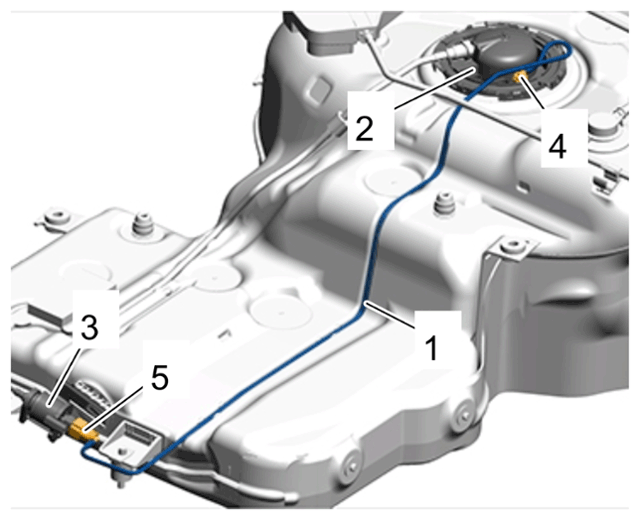

   Fuel line from auxiliary heater to fuel tank

   1. 3.1  Release and disconnect fuel line connection -4-  from fuel pump -2-  .
   2. 3.2  Release and disconnect fuel line connection -5-  from auxiliary heater pump -3-  .
   3. 3.3  Unclip and remove fuel line -1-  from fuel tank.
