Removing Fuel Line (From Connection In Front Wheel Housing To Heater)

WARNING: Flammable or explosive materials

Danger of fire or explosion
1. → Disconnect the battery.
2. → Avoid contact with hot parts or sources of ignition.
3. → Use suction to remove ignitable vapours.
4. → Attach warning sign in a clearly visible position.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
1. → Wear personal protective gear.
2. → Ventilate the work area well.
3. → Never ingest or inhale.
4. → Read specific information on the Hazard Sheet.
5. → Do not smoke, eat or drink in the work area.

Information

Escaping fuel must be soaked up using suitable binding material.
The fuel system must be depressurised before starting work on it.
Only work on the fuel system in well-ventilated rooms.
Any seals that were removed must always be replaced.
Never use sealant containing silicone or silicone spray when the injection system is open. Traces of silicone drawn in by the engine are not combusted and damage the oxygen sensors.

Information

Plastic lines must not be kinked or bent as this can make them brittle and start to leak.

Remove fuel line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

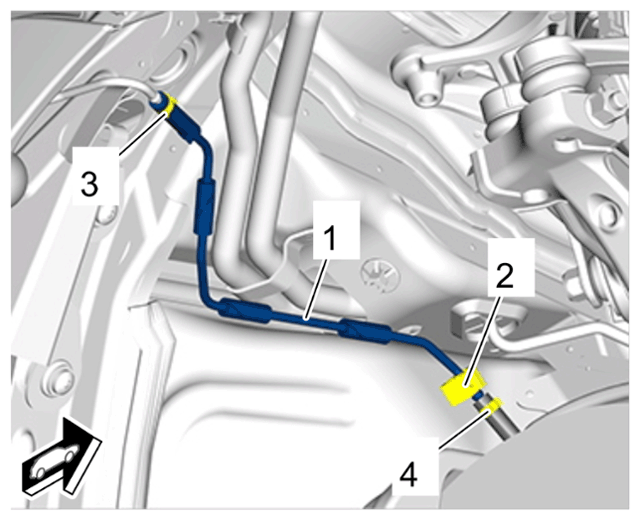

Fuel line from wheel housing to heater
1. 1.1 Unclip fuel line -1- from holder -2- .
2. 1.2 Loosen spring band clamp -3- using > VAS 6890 - spring band clamp pliers and disconnect fuel line -1- from heater line.
3. 1.3 Loosen spring band clamp -4- using > VAS 6890 - spring band clamp pliers and disconnect fuel line -1- from line at the front underbody.
4. 1.4 Guide the fuel line -1- out of the wheel housing.
