Removing Heater Holder

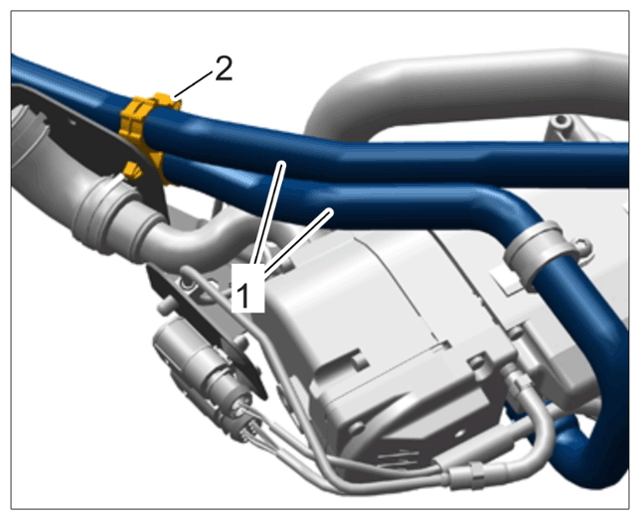

Disengage coolant hoses -1- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for coolant hoses

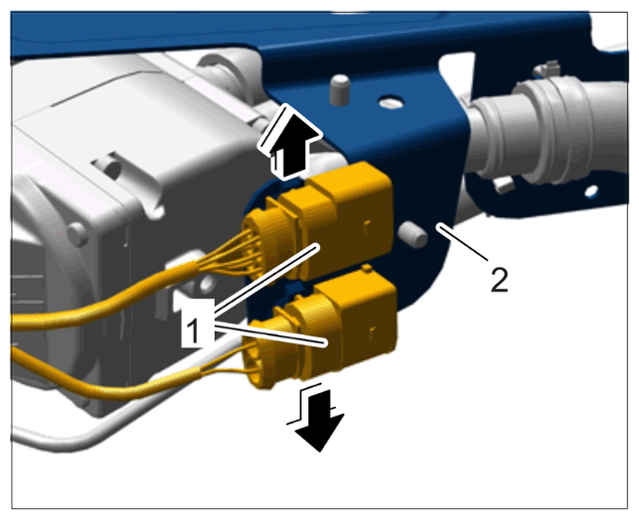

Release electric plug connections -1- and disconnect them by pulling them sideways -Arrows- off the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connections on bracket
Cut tie-wrap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake muffler on holder

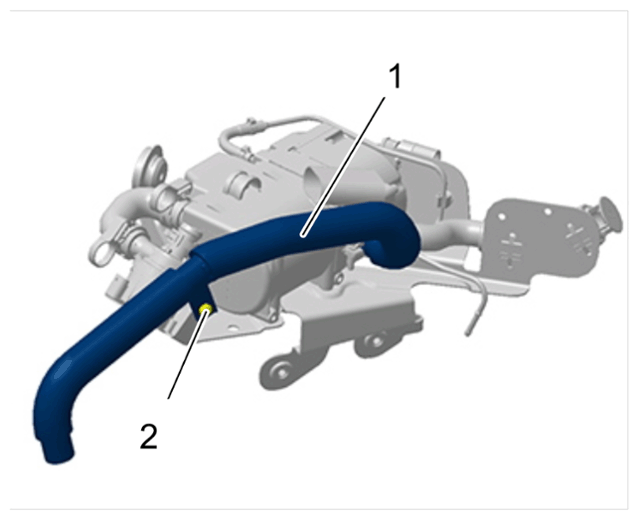

Loosen exhaust pipe -1- from holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust pipe on holder
1. 4.1 Unscrew screw on exhaust pipe -2- .

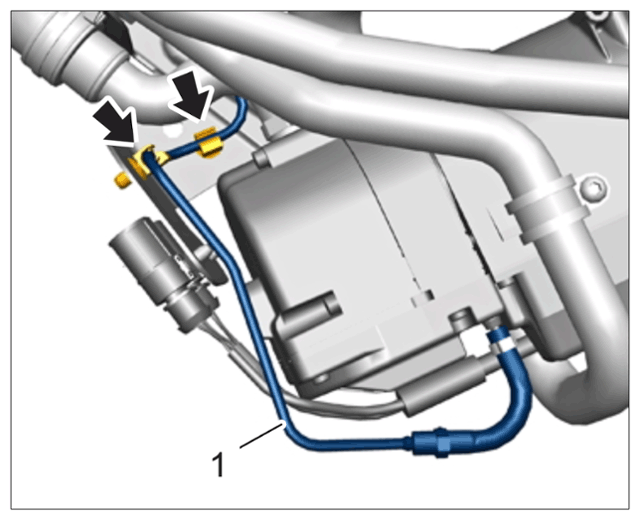

Unclip fuel line -1- at the marked positions -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line on holder

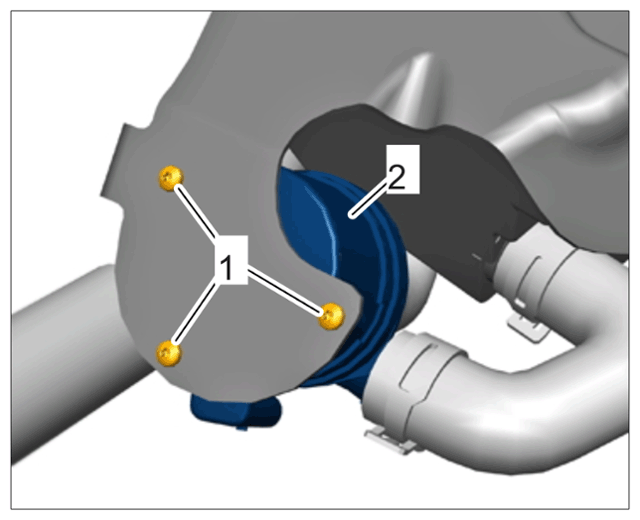

Unscrew screws -1- and remove circulating pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circulating pump on holder

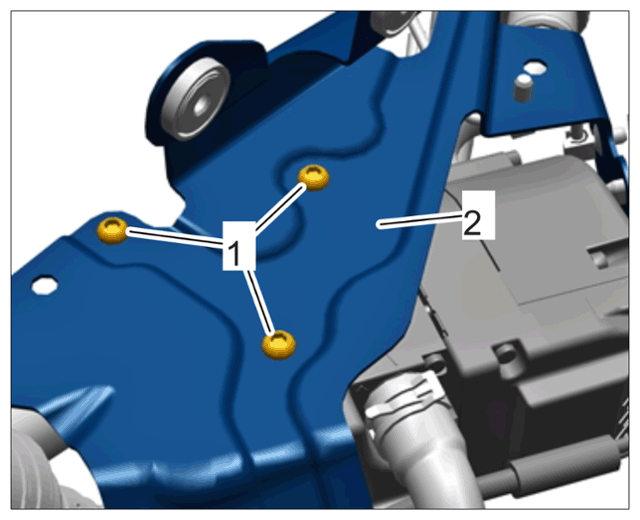

Loosen screws -1- and remove holder -2- from heater.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder to heater
