Installing Heater Holder

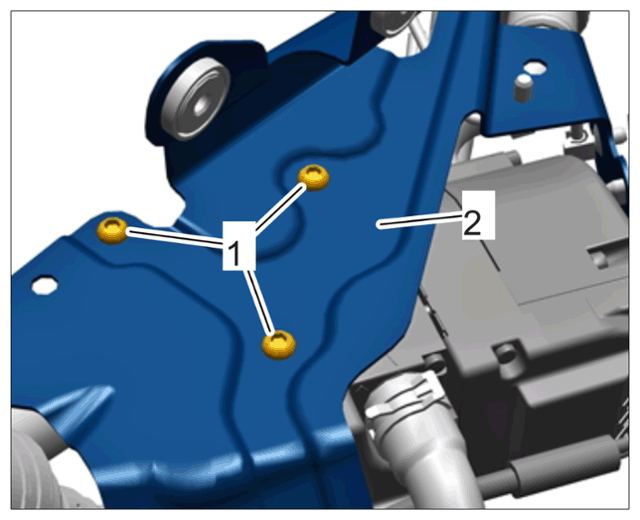

Position holder -2- on heater and fit and tighten screws -1- .
- Tightening torque 11 Nm (8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder to heater

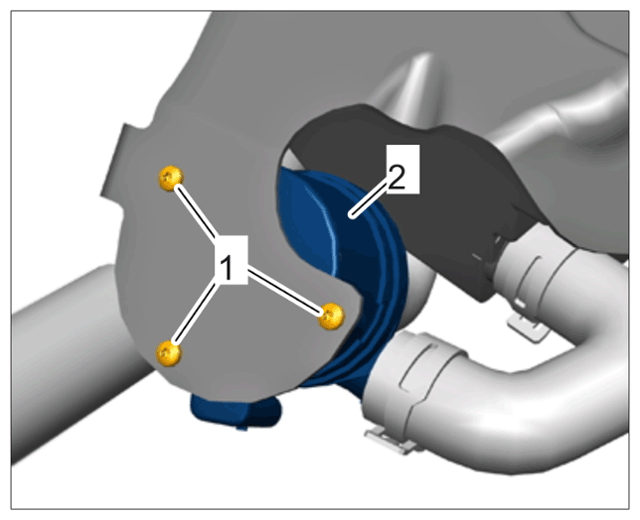

Position circulating pump -2- and fit and tighten screws -1- .
- Tightening torque 2 Nm (1.5 ftlb.) (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circulating pump on holder

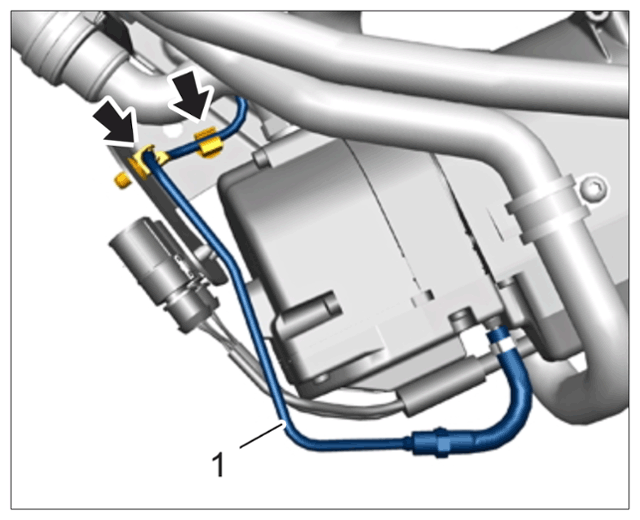

Clip in fuel line -1- at the marked positions -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line on holder

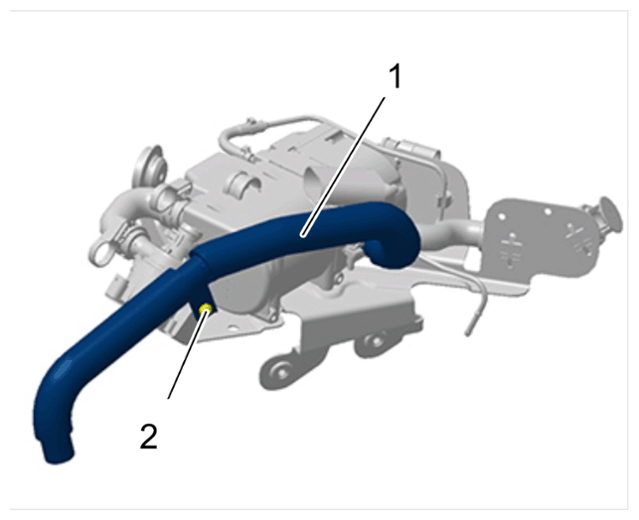

Secure exhaust pipe -1- on holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust pipe on holder
1. 4.1 Position exhaust pipe -1- and fit and tighten screw -2- .
  - Tightening torque 7 Nm (5 ftlb.)

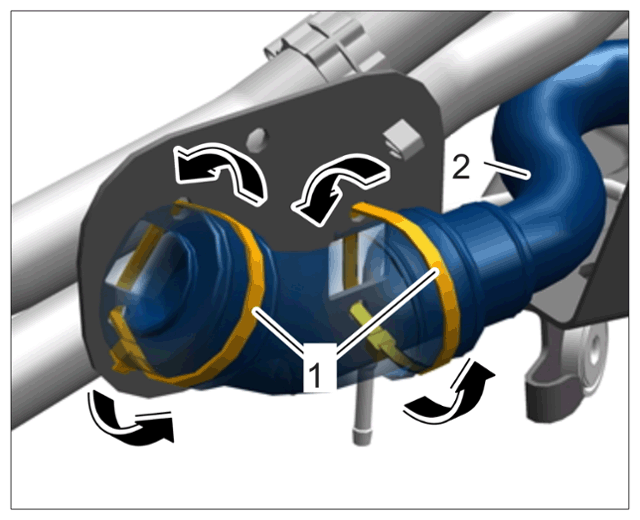

Position intake muffler -2- in the cut-outs in the holder and secure it to the holder using new tie-wraps -1-Arrows-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake muffler on holder

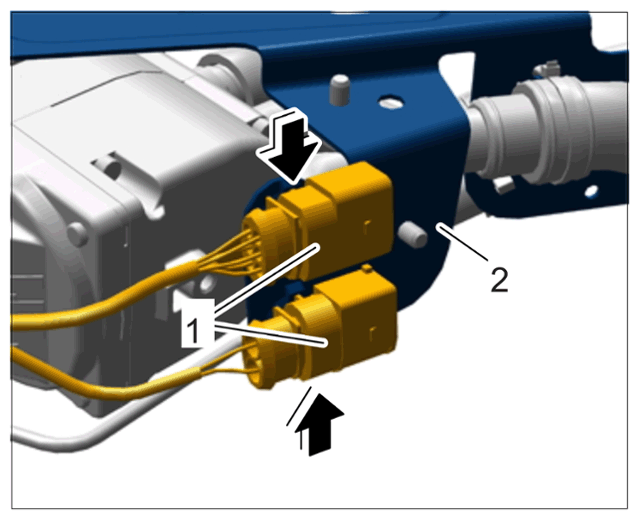

Push electric plug connections -1- sideways onto the holder -2- and engage them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heater connectors on holder

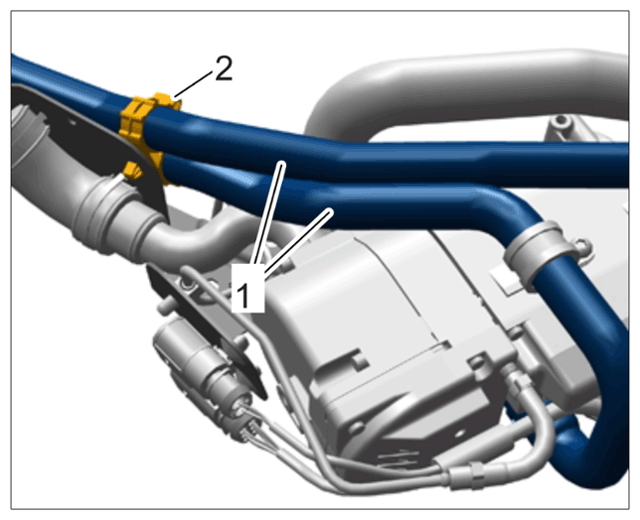

Insert coolant hoses -1- in the holder -2- and close the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for coolant hoses
