Installing Intake Muffler

Information

• There is no guarantee that re-used clamps will secure the component properly.
• Removed clamps must be replaced.
• Always use new clamps during installation.

1. Install intake muffler -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

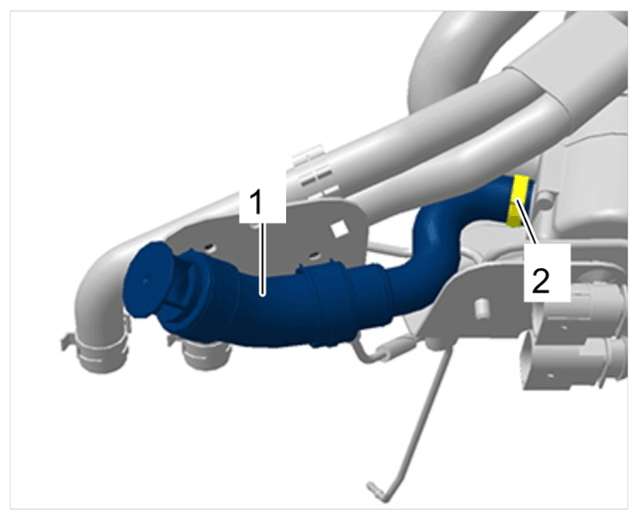

   Intake muffler

   1. 1.1  Push intake muffler -1-  onto the heater ana align it.
   2. 1.2 Secure new  clamp -2-  using a suitable tool.
2. Position intake muffler -1-  in the cut-outs in the holder -2-  and secure it to the holder using new  tie-wraps -3- (-Arrows-)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

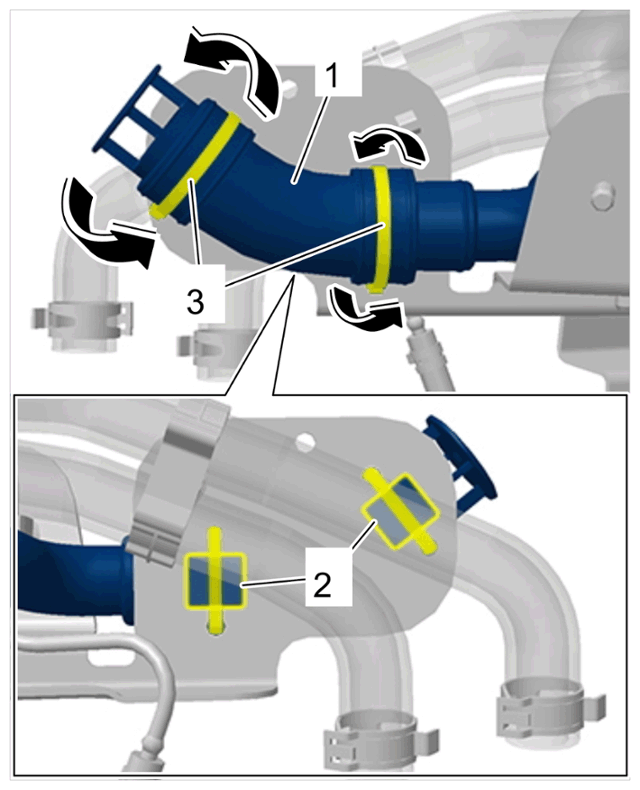

   Intake muffler mounting
