Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing cover for electric motor to combustion air housing Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15161971G15161972Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
G15161971G15161972Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Component overview of heater
Screws securing cover to combustion air blower Item 3 Tightening torque 3 Nm (2 ftlb.)
G15161973G15161974Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
G15161973G15161974Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Component overview of heater
Screws securing cover for control unit to heat exchanger housing Item 8 Tightening torque 3 Nm (2 ftlb.)
G15161975G15161976Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
G15161975G15161976Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Component overview of heater
Screws securing retaining clip to heat exchanger housing Item 11 Tightening torque 3 Nm (2 ftlb.)
G15161977G15161978Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
G15161977G15161978Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

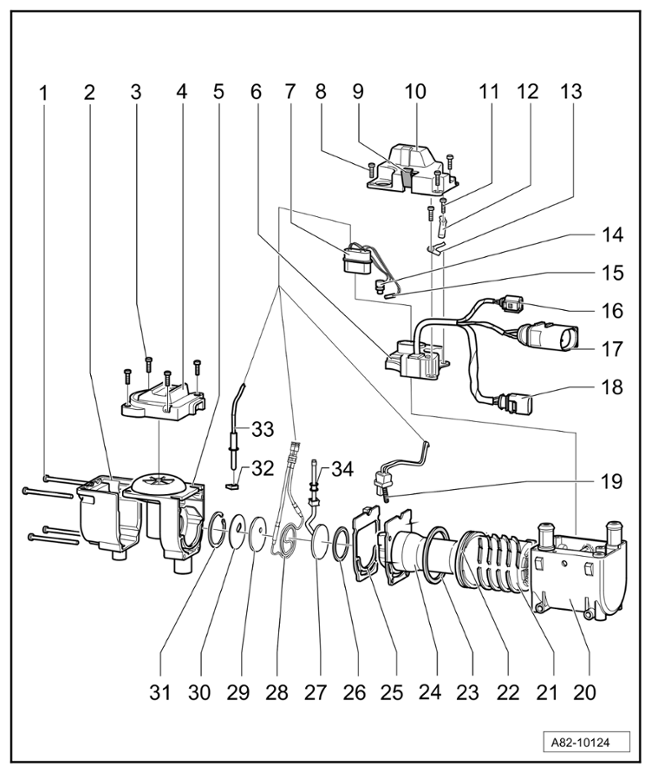

Component overview of heater
