Installing Heater

Information

• There is no guarantee that re-used clamps will secure the component properly.
• Removed clamps must be replaced.
• Always use new clamps during installation.

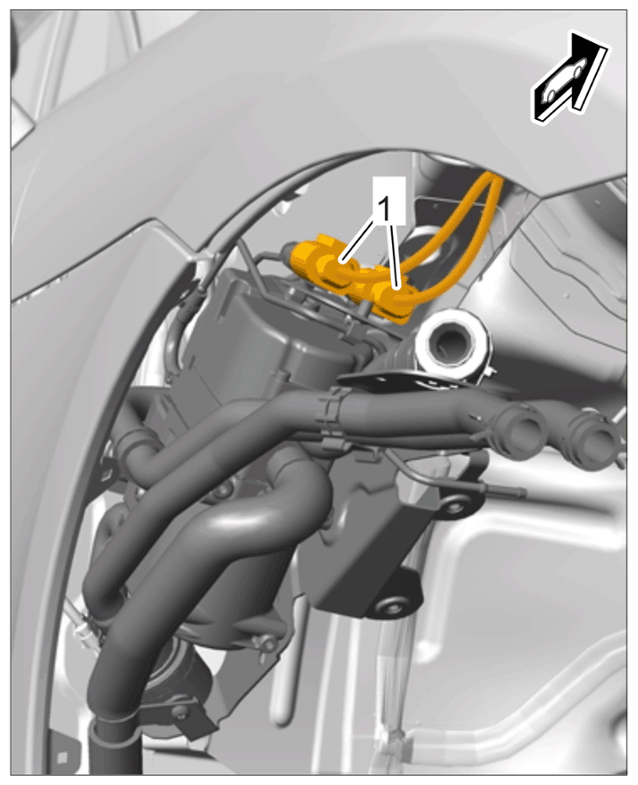

1. Connect electric plug connections -1-  until they engage securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections on heater

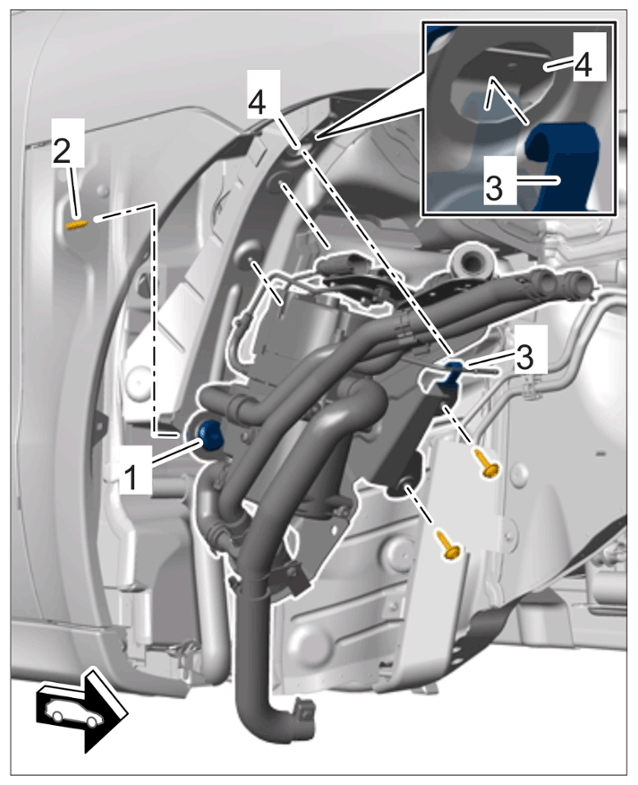

2. Place heater in position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing heater

   1. 2.1  Position rubber sleeve -1-  on the retaining pin -2-  .
   2. 2.2  Engage clip -3-  on the holder into the cut-out -4-  .

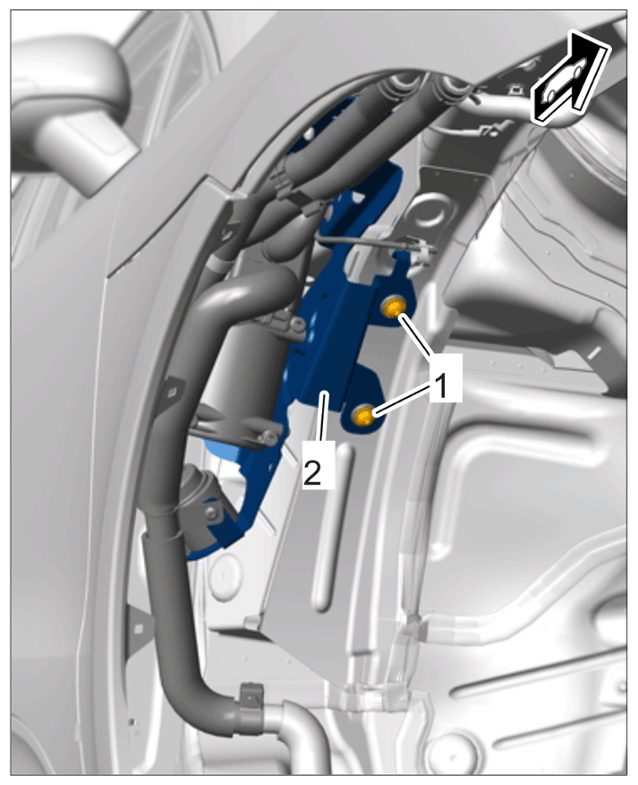

3. Fit screws for heater holder -1-  by hand.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for heater

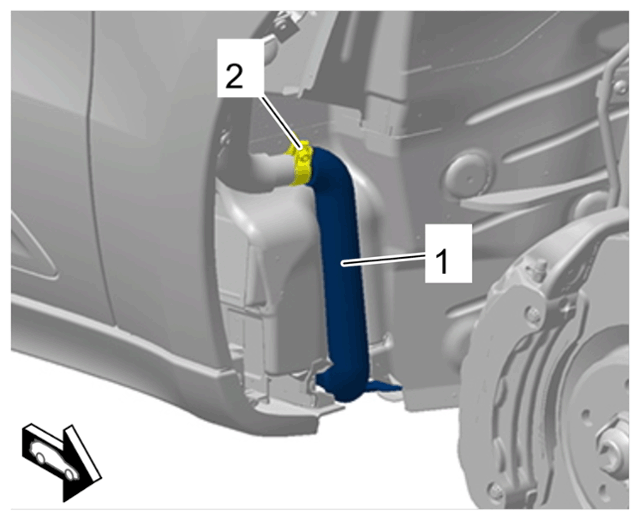

4. Position flexi-pipe for silencer -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Flexi-pipe on silencer

   1. 4.1  Push flexi-pipe for silencer -1-  with screw-type clamp -2-  onto the exhaust pipe.
   2. 4.2  Tighten screws on heater holder.
      • Tightening torque 20 Nm (15 ftlb.)
   3. 4.3  Tighten screw-type clamp -2-  .
      • Tightening torque 4 Nm (3 ftlb.)

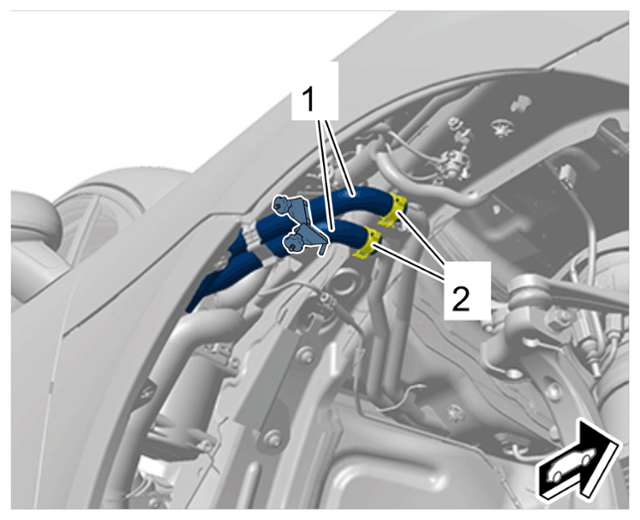

5. Secure coolant hoses -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant hoses

   1. 5.1  Push coolant hoses -1-  onto the coolant pipes.
   2. 5.2  Fasten spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  .
   3. 5.3  > 3094 - Hose clamp  must be removed from the coolant hoses -1-  .

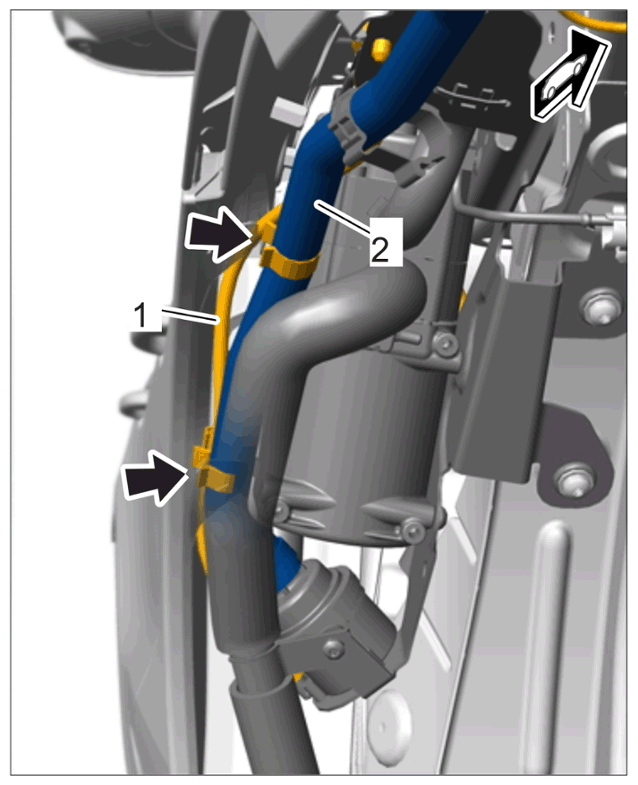

6. Clip electric line -1-  onto the coolant hose -2-  at the marked positions -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line on coolant hose

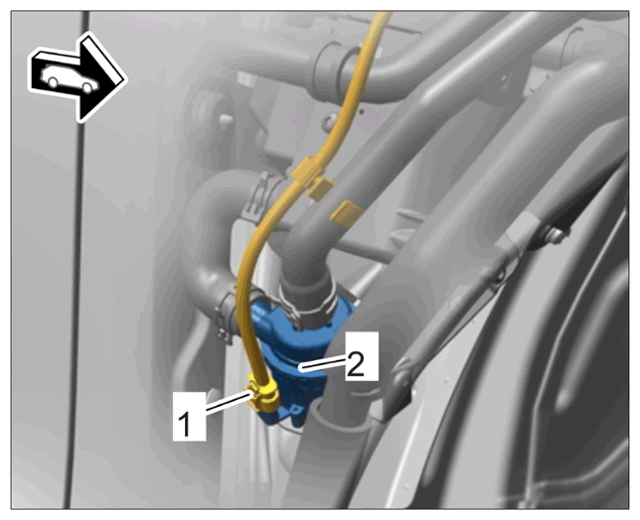

7. Connect electric plug connection -1-  to the circulating pump -2-  until it engages securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on circulating pump

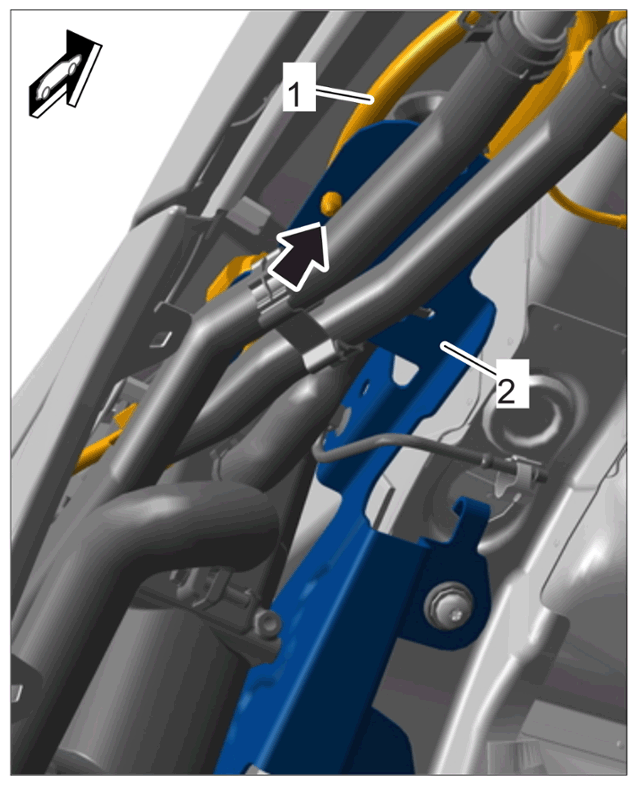

8. Clip electric line -1-  into holder -2-  at position -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line on holder

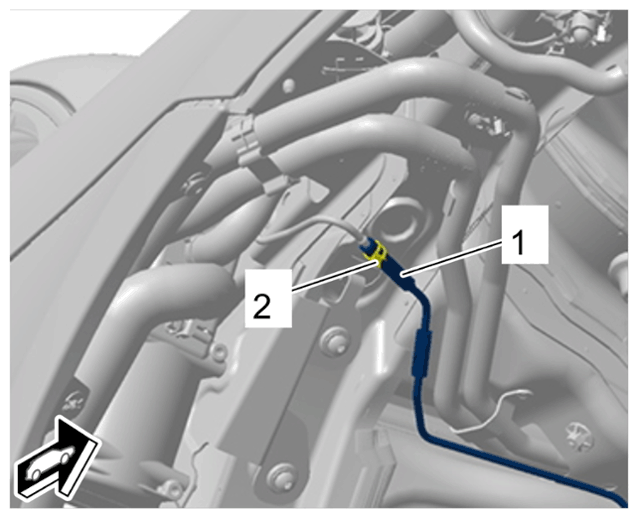

9. Secure the fuel line -1-  on the heater.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel line

   1. 9.1  Push on fuel line -1-  as far as it will go - ensure a minimum overlap of 25 mm.
   2. 9.2  Fasten spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  .
10. Pre-fill the fuel system:
    1. 10.1  Connect the PIWIS Tester  to the vehicle.
    2. 10.2  Select the Auxiliary heating  control unit in the control unit overview.
    3. 10.3 Maintenance/repairs  must now be selected.
    4. 10.4 Line filling  must now be selected. Then press Next.
