Removing Additional Pump

  1. Remove additional pump -1-  .

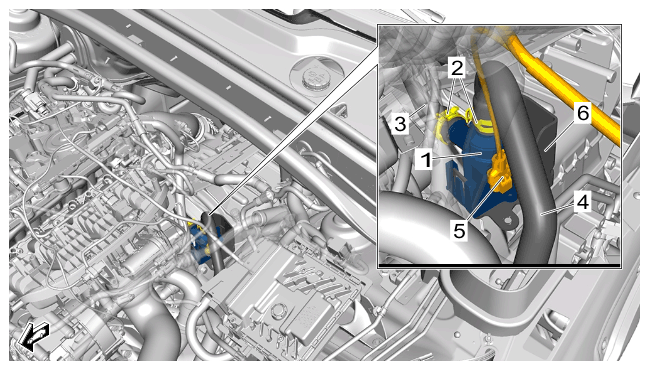

G15161941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional pump

  1. 1.1 Loosen spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  and pull off coolant hoses -3 and 4-  .
    1. 1.1.1 Catch emerging coolant using suitable aids.
  2. 1.2 Release and disconnect electric plug connection -5-  .
  3. 1.3 Release additional pump -1-  from holder -6-  and unclip and remove it.
