Installing Heat Exchanger Supply Hose (With Auxiliary Heater)

Installation is performed in reverse order. Pay particular attention to the following:

1. Tighten nuts for air inlet housing -2-  .

   > Tightening - torque 3.5 Nm (2.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

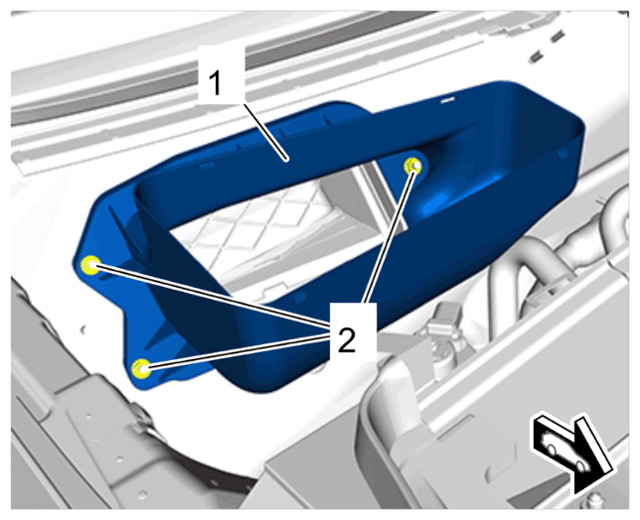

   Air inlet housing

2. Tighten nuts on air inlet housing cover -2-  .

> Tightening - torque 3.5 Nm (2.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

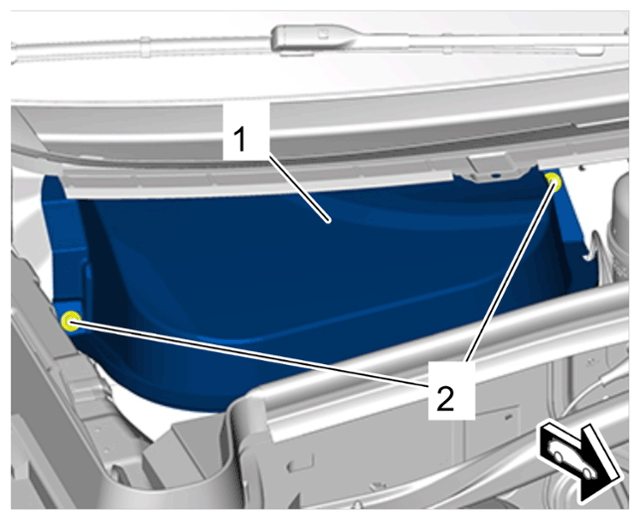

Air inlet housing cover
