Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Brake line to brake master cylinder (left-hand drive vehicles)	Item 3: Union nut	Tightening torque	14 Nm (10.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines on brake master cylinder
Brake line to outer brake master cylinder (right-hand drive vehicles)	Item 3: Union nut	Tightening torque	18 Nm (13 ftlb.)

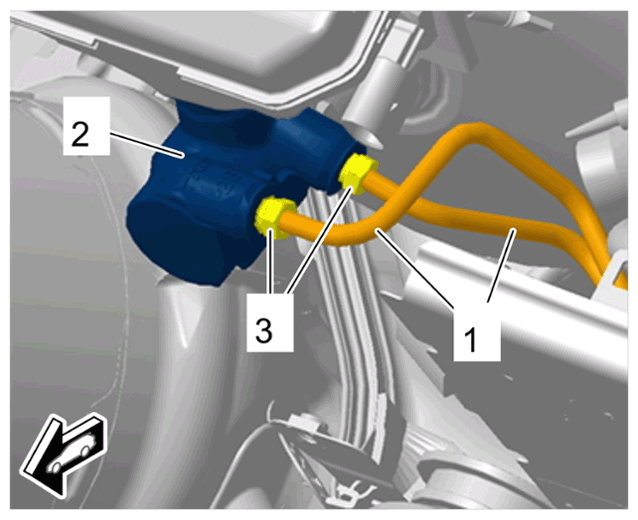

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines to brake master cylinder (left-hand drive vehicles)
Brake line to outer hydraulic unit (right-hand drive vehicles)	Item 2: Union nut	Tightening torque	18 Nm (13 ftlb.)

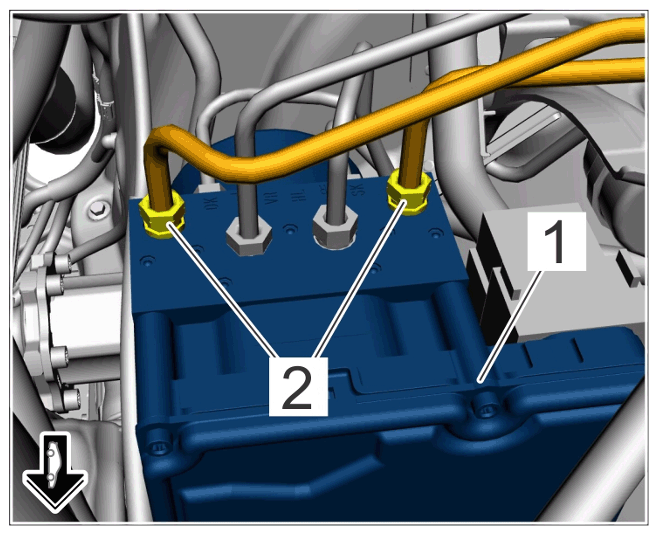

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines to outer hydraulic unit
Brake line to outer hydraulic unit (left-hand drive vehicles)	Item 2: Union nut	Tightening torque	14 Nm (10.5 ftlb.)
Brake line to inner and rear hydraulic unit	Item 2 and 3: Union nut	Tightening torque	14 Nm (10.5 ftlb.)

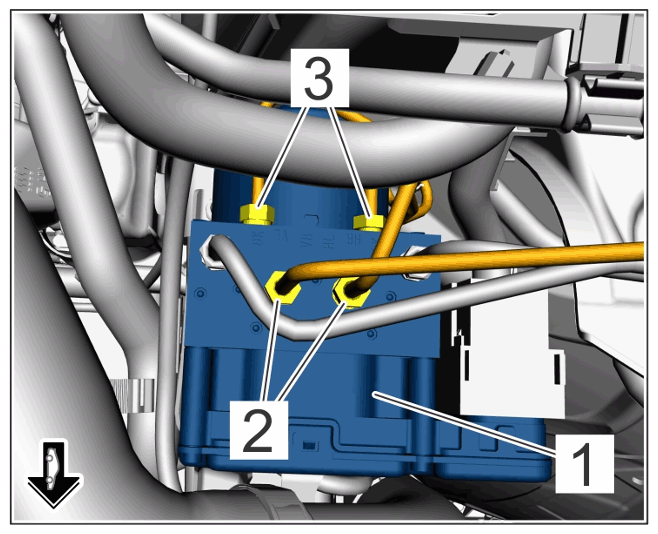

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake lines to inner and rear hydraulic unit
Brake line to hydraulic unit (right-hand drive)	Line: Brake calliper - hydraulic unit	Tightening torque	14 Nm (10.5 ftlb.)
Brake line to hydraulic unit (right-hand drive)	Line: Brake master cylinder - hydraulic unit	Tightening torque	18 Nm (13 ftlb.)
Pedals to body	Hexagon nut	Tightening torque	9 Nm (6.5 ftlb.)
Brake booster to pedals	Item 2: bi-hexagonal head bolt	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake booster screws
Brake master cylinder to brake booster	Item 2: Hexagon nut/Always replace nuts following removal	Tightening torque	49 Nm (36 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake master cylinder
Brake fluid reservoir to brake master cylinder	Item 2: Screw	Tightening torque	5 Nm (3.5 ftlb.)

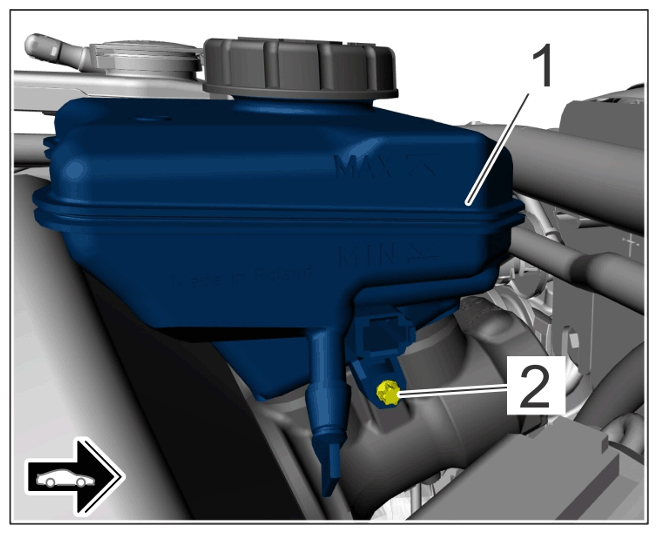

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake fluid reservoir on brake master cylinder
Vacuum pump to engine		Tightening torque	9 Nm (6.5 ftlb.)
Bleeder screw on front brake calliper	M10 x 1 thread	Tightening torque	14 Nm (10.5 ftlb.)
Bleeder screw on rear brake calliper		Tightening torque	10 Nm (7.5 ftlb.)
Rear brake line on rear brake hose	Item 2	Tightening torque	14 Nm

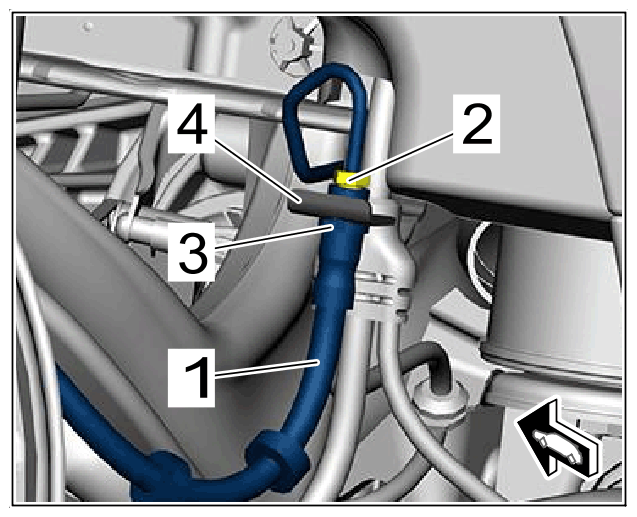

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake hose
