Installing Coolant Temperature Sensor (Engine Outlet)
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

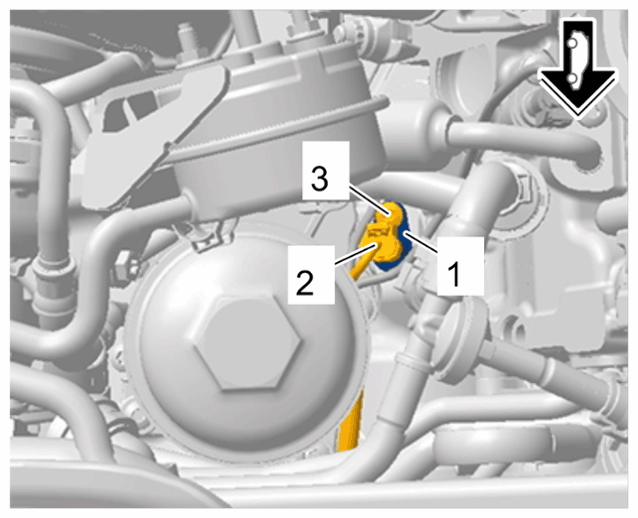

Coolant temperature sensor (engine outlet)
- 1.1
Replace O-rings on coolant temperature sensor.
- 1.2
Tighten screw on coolant temperature sensor -3-
.
