Installation Position

WARNING: This page is about a different variant/trim than selected.

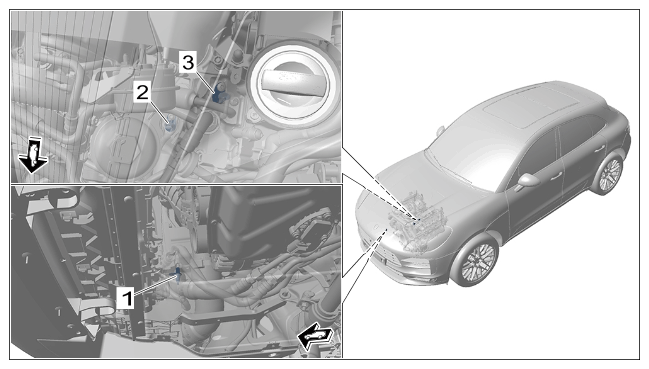

G15149941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Coolant temperature sensor (radiator outlet)
  2. Coolant temperature sensor (engine outlet)
  3. Coolant temperature sensor (cylinder head)
