Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | De... | Type | Basic v... | Toleran... | Toleran... |
|---|---|---|---|---|---|
| Lower screw on radiator mounting holder | TP7-22 x 1 | Tightening torque | 14 Nm (10.5 ftlb.) | ||
| ScrewsATF lines to radiator | Tightening torque | 5 Nm (3.5 ftlb.) | |||

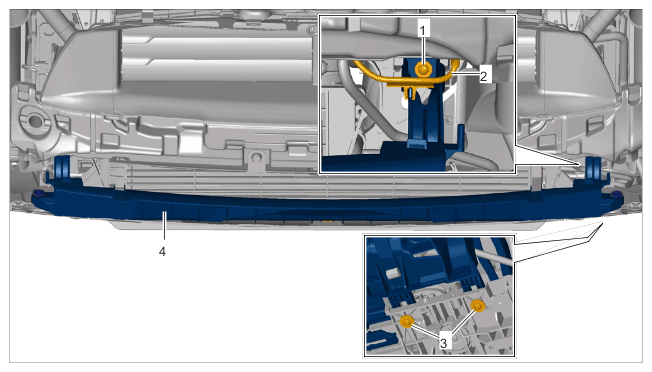

| Screws securing pedestrian protection to lock carrier, top | Item 1 | Tightening torque | 4.5 Nm (3.25 ftlb.) | ||
|
Pedestrian protection |
|||||
| Screws securing pedestrian protection to lock carrier, bottom | Item 3 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Pedestrian protection |
