Installing Radiator

Information

• Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel.

1. Replace seals on coolant hoses at the top and bottom.
2. Install the radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

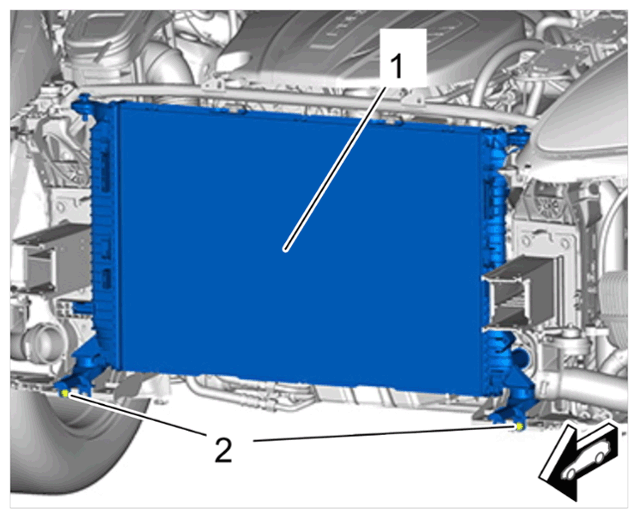

   Radiator

   1. 2.1  Position the radiator
   2. 2.2  Fit and tighten screws for the radiator bracket -2-  .
      • Tightening torque 14 Nm (10.5 ftlb.)

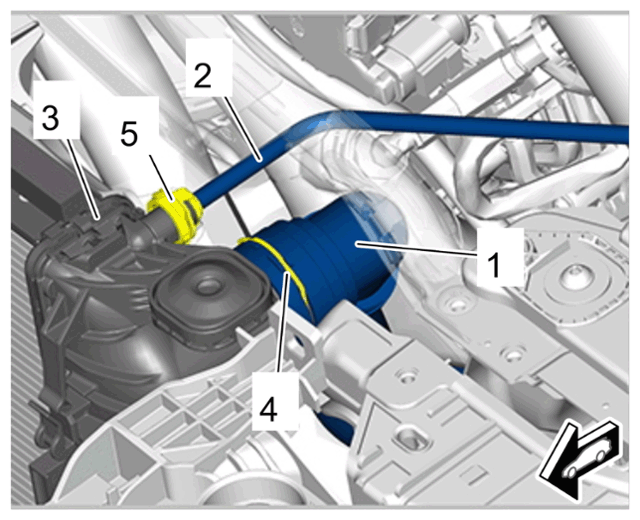

3. Install upper coolant hose -1-  and return line -2-  on the radiator -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper coolant hose

   1. 3.1  Remove stoppers from line connections.
   2. 3.2  Push on return line -2-  and lock quick-connecting lock -5-  .
   3. 3.3  Push on upper coolant hose -1-  and lock safety clip -4-  .

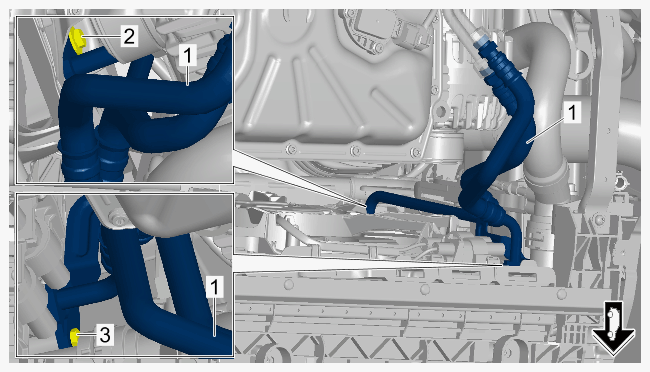

4. Install front section of ATF cooling line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ATF cooling line - front section

   1. 4.1  Remove stoppers from line connections.
   2. 4.2  Position front section of the ATF cooling line -1-  .
   3. 4.3  Fit and tighten screws for ATF lines -2 and 3-  .
      • Tightening torque 5 Nm (3.5 ftlb.)

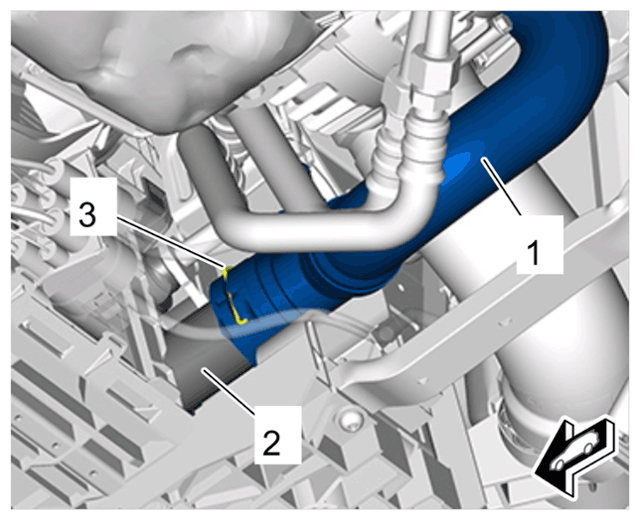

5. Install lower coolant hose -1-  on radiator -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower coolant hose

   1. 5.1  Fit lower coolant hose -1-  and lock safety clip -3-  .

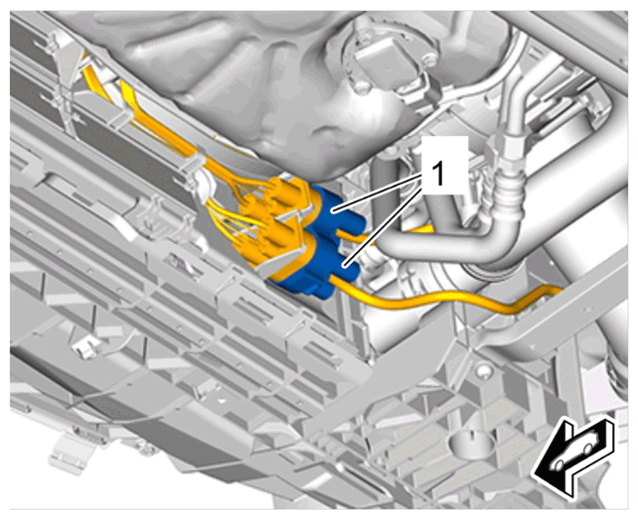

6. Connect and lock cable plugs for fan motors -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plugs for fan motors

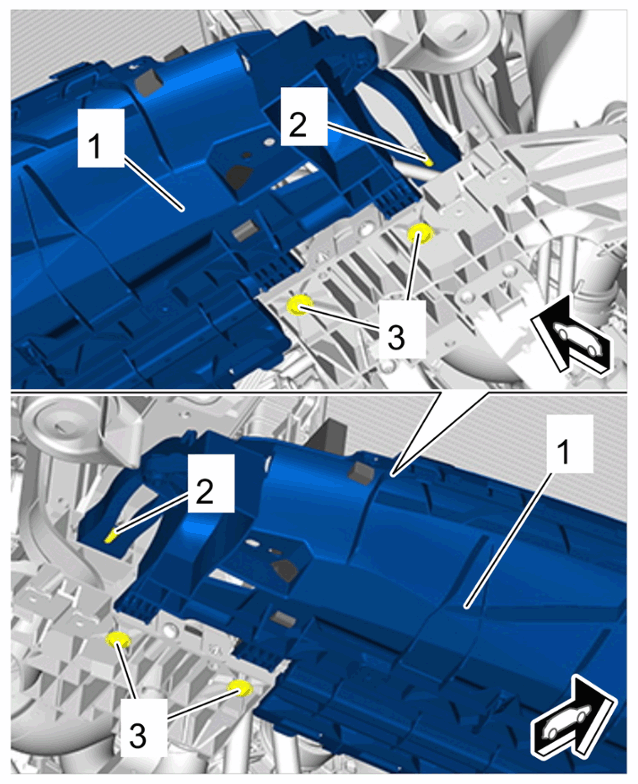

7. Install pedestrian protection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pedestrian protection, bottom

   1. 7.1  Tighten screws on pedestrian protection -3-  .
      • Tightening torque 3 Nm (2 ftlb.)
   2. 7.2  Tighten screws on pedestrian protection -2-  .
      • Tightening torque 4.5 Nm (3.25 ftlb.)
