Removing Motor For Cooling-Air Flaps

Information

The pictures shown in this document may differ from the original.

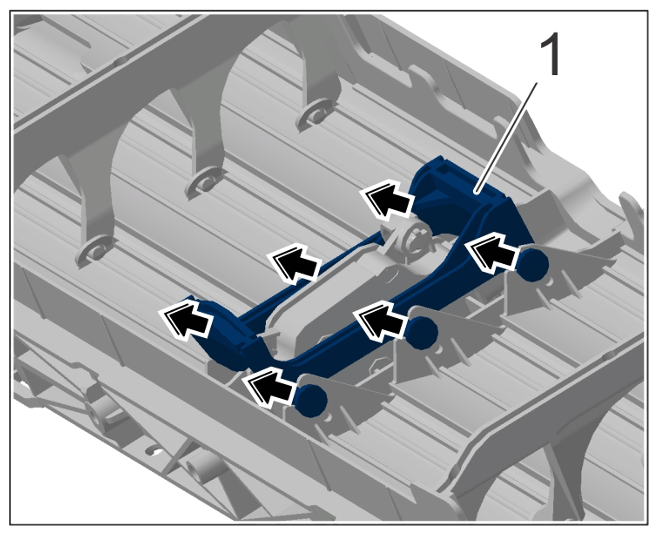

1. Remove driver for cooling-air flaps -1-  in. -Arrow direction-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Driver for cooling-air flaps

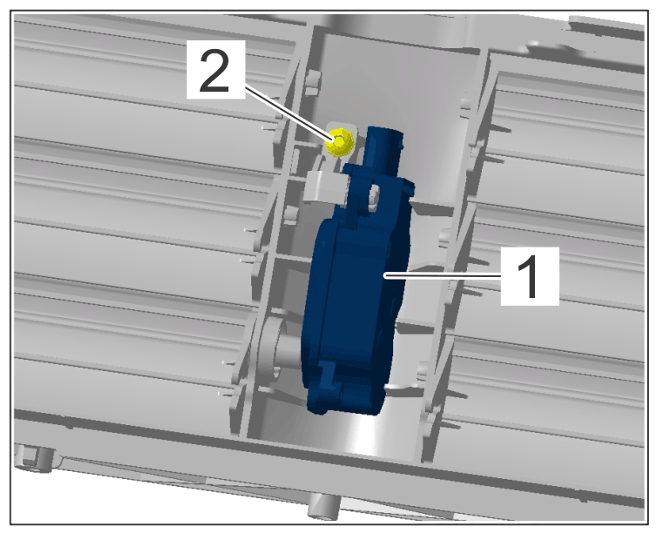

2. Loosen motor for cooling-air fl  aps. -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Motor for cooling-air flaps (similar illustration)

   1. 2.1  Unscrew screw. -2-

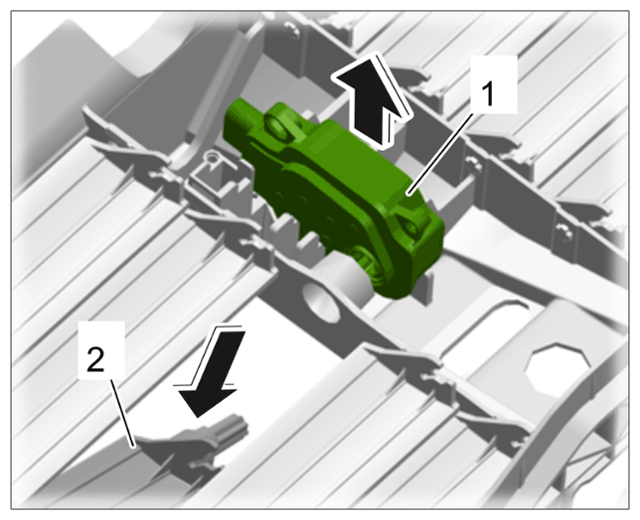

3. Remove motor for cooling-air flaps. -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Motor for cooling-air flaps (similar illustration)

   1. 3.1  Lift motor for cooling-air flaps -1-  up and remove it.
