Removing Front Air Guide (Rear)

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric line -1-  from front air guide (rear) -2-  .

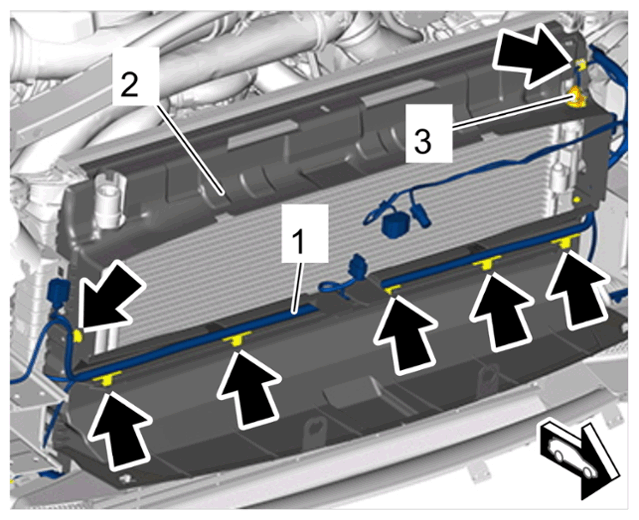

    G15149844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line on front air guide (rear)

    1. 1.1  Release and disconnect cable plug -3-  .
    2. 1.2  Unclip clips -Arrows-  and move electric line aside.
  2. Remove front air guide (rear) -1-  .

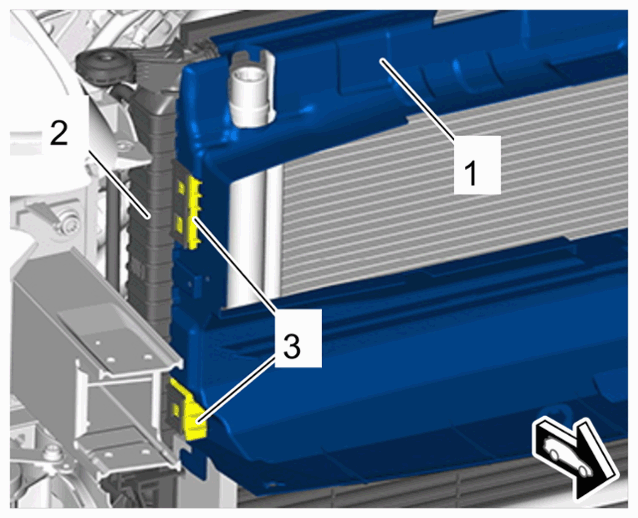

    G15149845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front air guide (rear)

    1. 2.1  Release locking lugs -3-  and remove air guide -1-  from radiator -2-  .
