Removing Front Air Guide (At The Top)

WARNING: This page is about a different variant/trim than selected.

Unclip line -1- from front air guide (at the top) -2- with clips -3- from the air guide -2- and lay it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

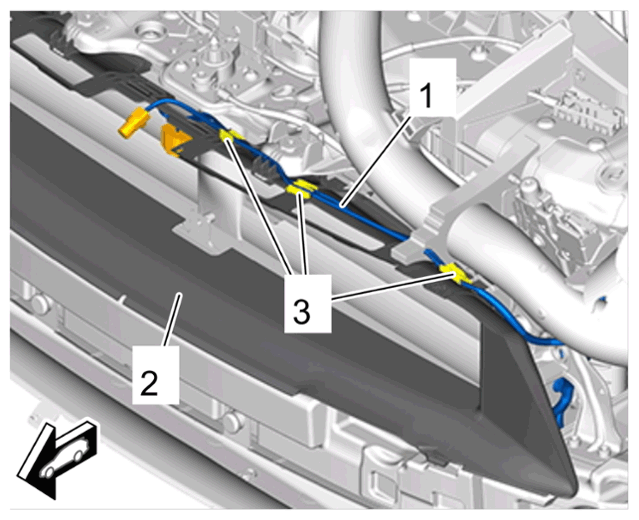

Line on front air guide (top)
Remove front impact absorber. -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

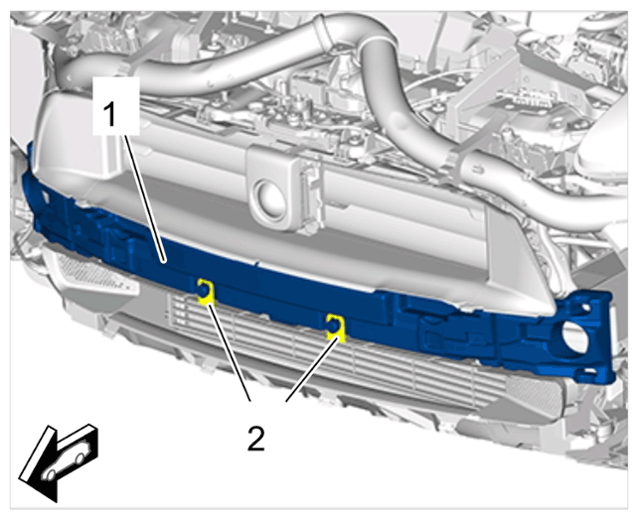

Front impact absorber
1. 2.1 Release impact absorber -1- from the tabs -2- and remove it.
Remove front air guide (at the top). -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

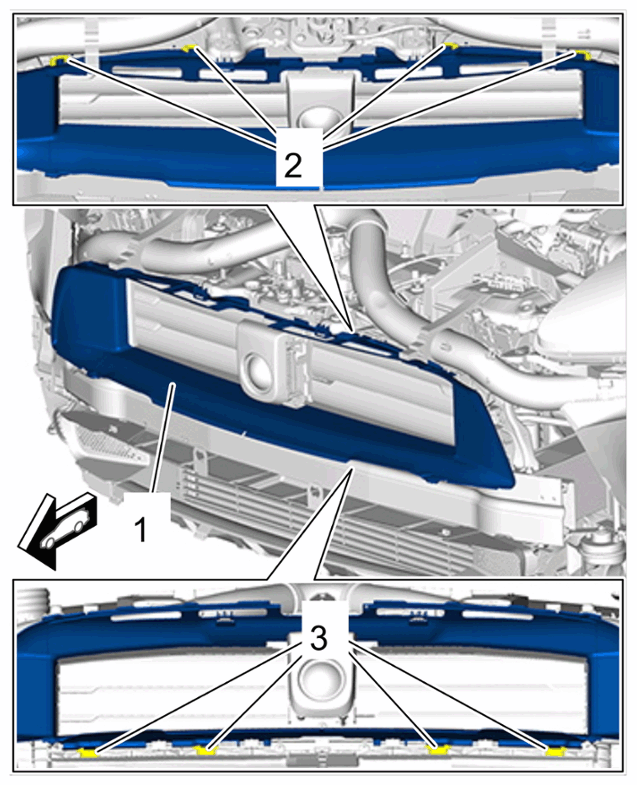

Front air guide (top)
1. 3.1 Unclip clips. -2 und 3-
2. 3.2 Remove front air guide (at the top). -1-
