Removing Front Air Guide (At The Bottom)
WARNING: This page is about a different variant/trim than selected.
- Unclip front air guide (at the bottom) -1-
from pedestrian protection (removed) -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

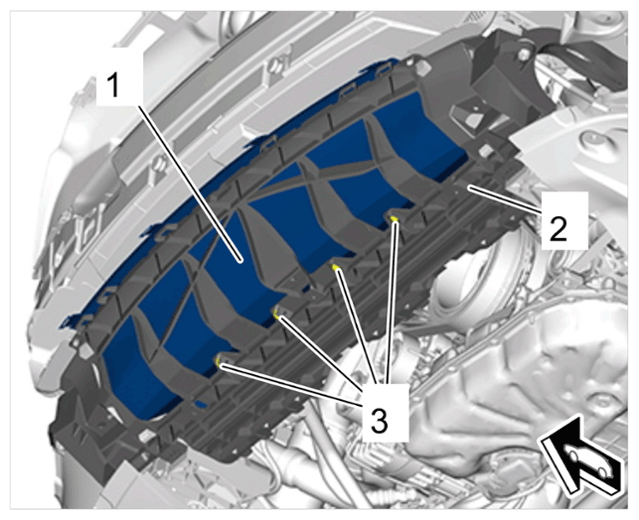

Front air guide (at the bottom)
- 1.1
Release retaining lugs -3-
.
- 1.2
Remove front air guide (at the bottom) -1-
.
