Removing Muffler

Hot components

• Risk of burns
  1. → Let hot components cool down.
  2. → Wear personal protective gear.

1. Remove muffler (silencer) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

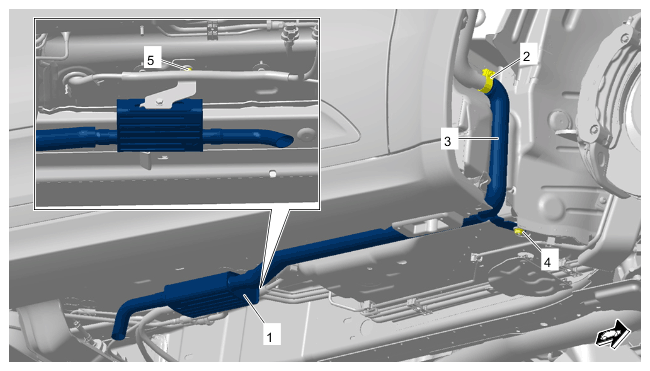

   Mufflers (silencers)

   1. 1.1  Loosen screw-type clamp -2-  .
   2. 1.2  Pull flexi-pipe -3-  off the exhaust pipe.
   3. 1.3  Unscrew nut on muffler pipe -4-  .
   4. 1.4  Unscrew nut on muffler holder -5-  and remove muffler -1-  .
