Removing Intake Muffler

  1. Cut tie-wrap -1-  .

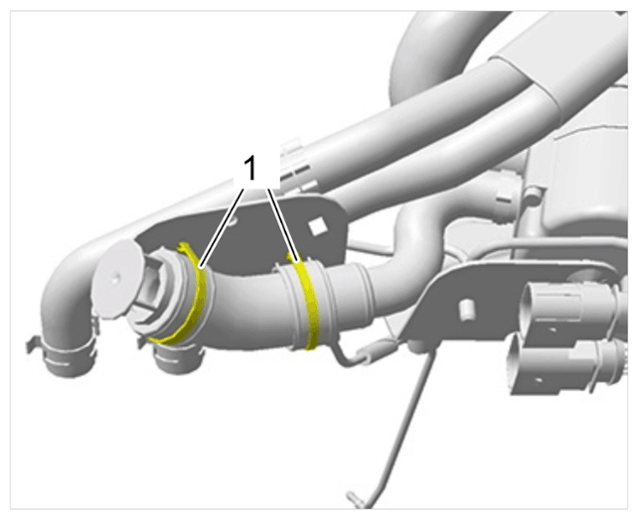

    G15161983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tie-wrap on intake muffler

  2. Remove intake muffler -1-  .

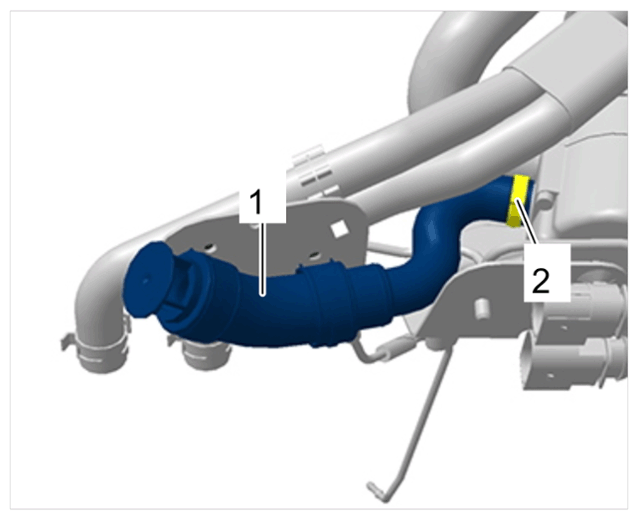

    G15161984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake muffler

    1. 2.1  Loosen clamp -2-  using a suitable tool.
    2. 2.2  Pull intake muffler -1-  off the heater.
