Removing Heat Exchanger Supply Hose (R4 Without Auxiliary Heater)

1. Remove heat exchanger supply hose -1-  from connection on the engine side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

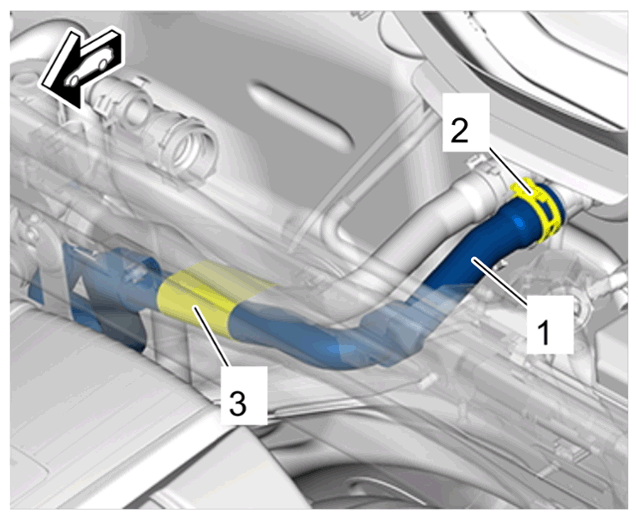

   Heat exchanger supply hose connection on engine side (R4 without auxiliary heater)

   1. 1.1 Loosen spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  and pull off heat exchanger supply hose -1-  .
      1. 1.1.1 Soak up any emerging coolant using suitable aids.
   2. 1.2 Guide heat exchanger supply hose -1-  through the hose sleeve -3-  out of the engine compartment into the plenum panel.
2. Remove heat exchanger supply hose -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

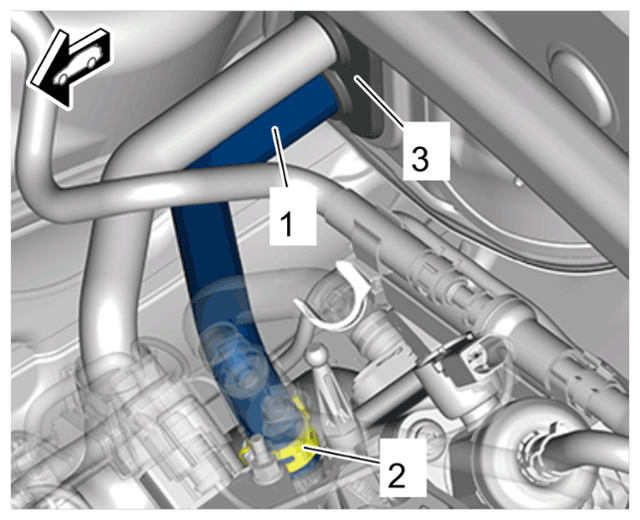

Heat exchanger supply hose on heat exchanger connection piece

1. 2.1 Loosen spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  and pull heat exchanger supply hose -1-  off the heat exchanger connection piece.
   1. 2.1.1 Soak up any emerging coolant using suitable aids.
2. 2.2 Disconnect heat exchanger supply hose -1-  from connection piece -3-  and guide it out of the plenum panel.
