Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cover for centre underbody.
  2. Remove transmission support -9-  .
    1. 2.1  Support the transmission using > VAS 6931 - engine and gearbox jack  .
    2. 2.2  Loosen and unscrew nuts -1-  an d screws -2-  .
    3. 2.3  Remove transmission support -9-  .

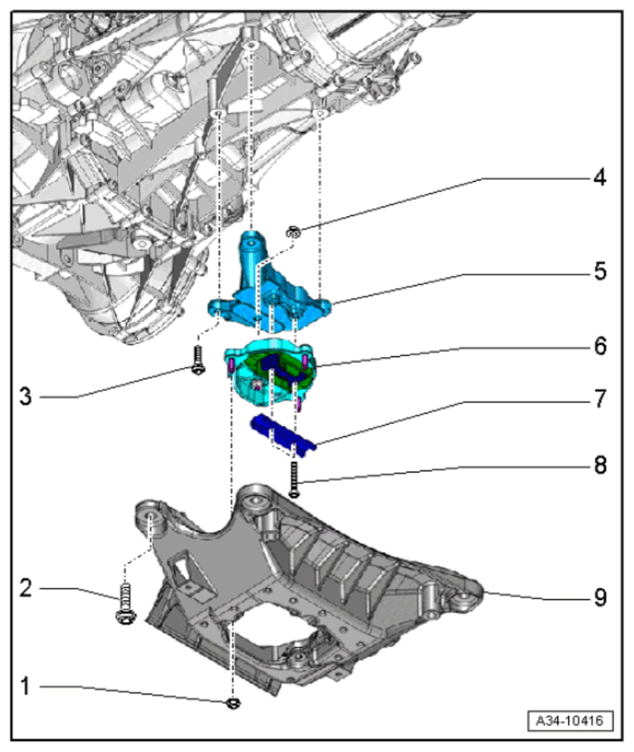

    Fig 1: Transmission Bracket Component Location
    G15152632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission bracket
