Removing Left Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.
  1. Remove left halfshaft flange -1-  .

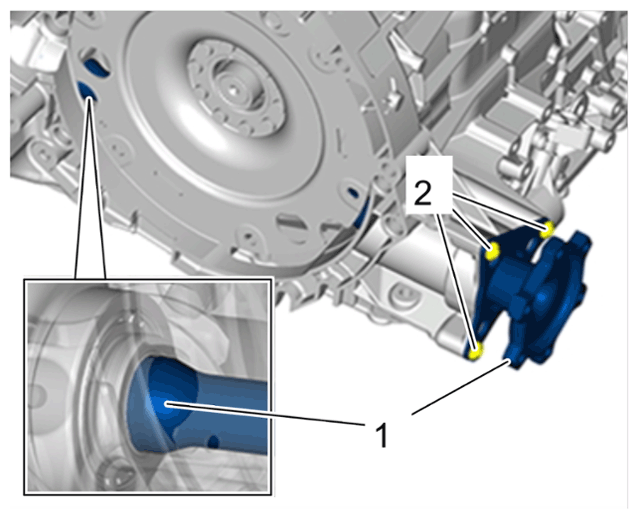

    G15152553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left halfshaft flange

    1. 1.1  Unscrew screws -2-  .
      1. 1.1.1  Replace screws.
    2. 1.2  Guide left halfshaft flange -1-  slowly and carefully out of the transmission.
  2. Clean the halfshaft flange and set it down on a clean surface.
  3. Remove drive plate.
  4. Clean sealing ring on front left halfshaft flange -1-  and transmission housing in the area leading to the differential.

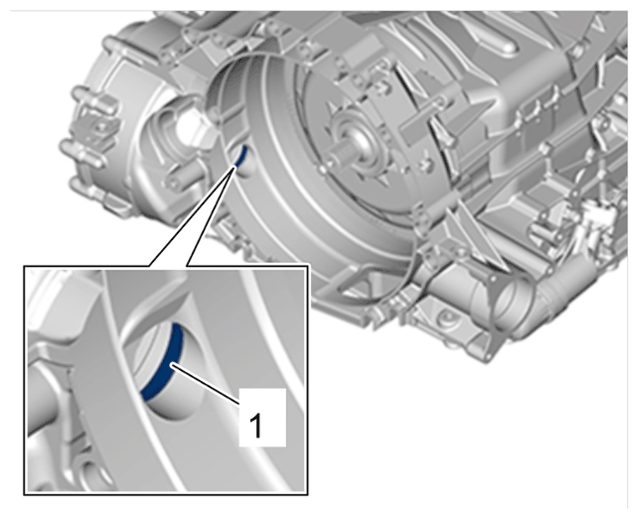

    G15152554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for front left halfshaft flange
