Removing Sealing Ring For Halfshaft Flange (Rear Final Drive)

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Pull out sealing ring on halfshaft flange -1-  using > Nr.168-1 - impact puller-2-  .

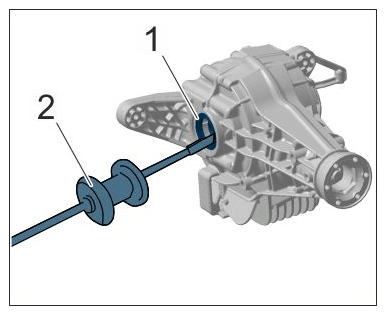

    G15152548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring and impact puller
