Replacing Combination Sensor

WARNING: This page is about a different variant/trim than selected.

WARNING: Combination sensor not calibrated or calibrated incorrectly

Unexpected vehicle handling
Combination sensor does not function
Malfunction in combination sensor
→ After installing or replacing the combination sensor, calibrate vehicle using PIWIS Tester.

→ Only perform calibration when the vehicle is positioned horizontally and the brake is not actuated.

Information

The combination sensor is located under the centre console.

The functions listed below are integrated in the combination sensor:

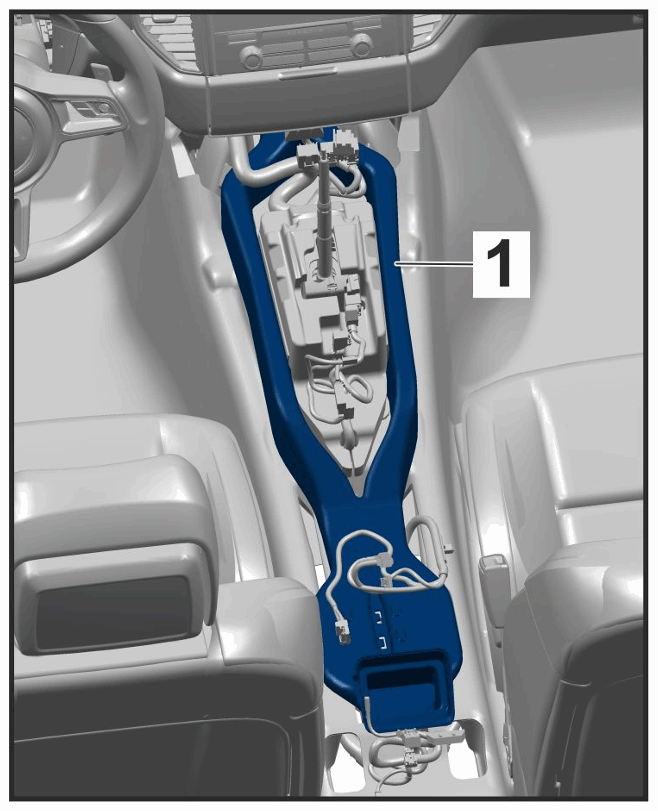

Disconnect air guide for centre console -1- at the front of the heating/fresh-air unit and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for centre console

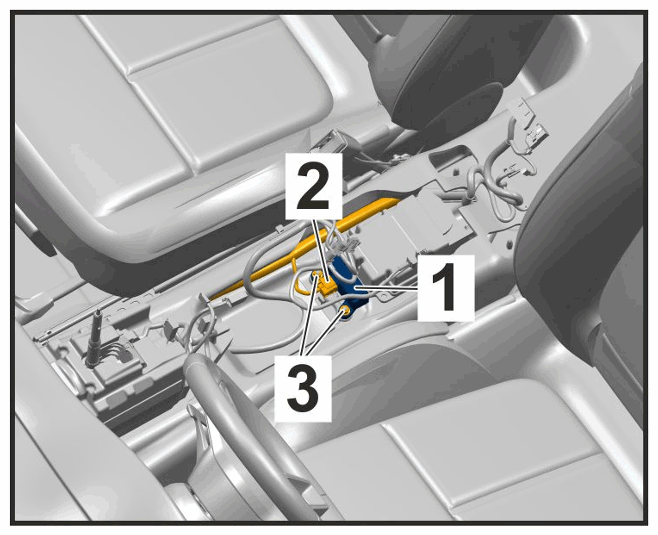

Remove combination sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for combination sensor
1. 2.1 Release and disconnect electric connector -2- .
2. 2.2 Unscrew nuts -3- .
Fit combination sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for combination sensor
1. 3.1 Position the combination sensor so that distance -X - from combination sensor -1- to airbag triggering unit -2- is at least > Length 0.6 mm .
2. 3.2 Tighten nuts -3- . > Tightening - torque 8 Nm (6 ftlb.)
3. 3.3 Connect and lock electric connector -2- .
Fit air guide for centre console -1- and connect it at the front of the heating/fresh-air unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for centre console
