Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove hydraulic unit.
> 453019 - REMOVING AND INSTALLING HYDRAULIC UNIT - PORTION ON "REMOVING"
Convert holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

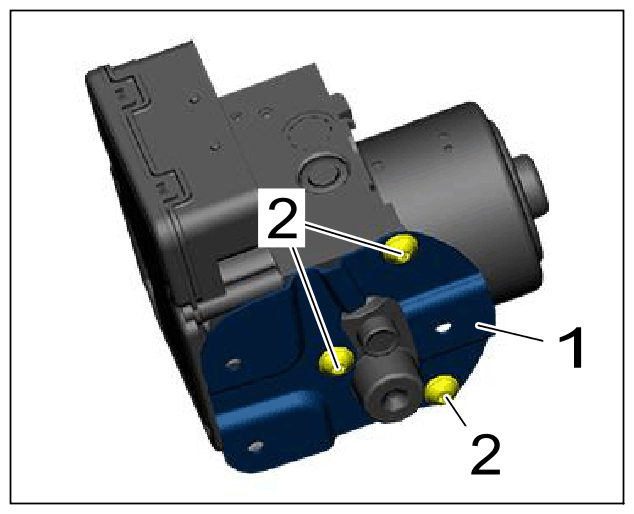

Holder for hydraulic unit
1. 2.1 Unscrew screws -2- and remove holder -1- from hydraulic unit.
2. 2.2 Fit holder -1- on new hydraulic unit.
3. 2.3 Fit and tighten screws -2- .
  >
Install new hydraulic unit.
> 453019 - REMOVING AND INSTALLING HYDRAULIC UNIT - PORTION ON "INSTALLING"
