Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

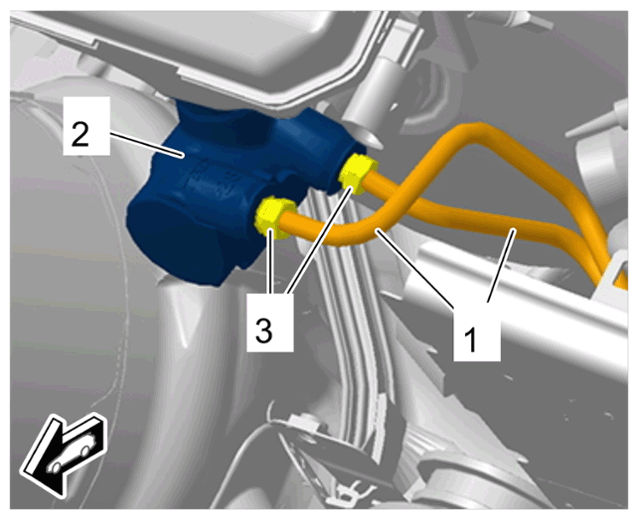

| Brake line to brake master cylinder (left-hand drive vehicles) | Item 3: Union nut | Tightening torque | 14 Nm (10.5 ftlb.) | ||
|
Brake lines on brake master cylinder |
|||||
| Brake line to hydraulic unit (right-hand drive) | Line: Brake calliper - hydraulic unit | Tightening torque | 14 Nm (10.5 ftlb.) | ||
| Brake line to hydraulic unit (right-hand drive) | Line: Brake master cylinder - hydraulic unit | Tightening torque | 18 Nm (13 ftlb.) | ||
| Screw-type clamp securing pressure hose to throttle housing | Tightening torque | 5.5 Nm (4 ftlb.) |
