Removing Hydraulic Unit

Information

• When fitting the hydraulic connections, the electric plug connections on the control units must remain connected as long as possible.
• This prevents the plug connections on the hydraulic unit or inside the connector from being splashed with brake fluid or water.
• Before disconnecting the cable plug from the hydraulic unit, wipe the connector to remove any dampness. Apply suitable protection to the connectors if necessary.
• Brake fluid on electrical contacts (even thinned brake fluid) causes corrosion and may result in faults in the system.
• The brake lines must not be bent in the hydraulic unit area.
• Clean the connection points of the brake lines, but not with cleaning agents.
• Rinse off emerging brake fluid thoroughly with water.

Information

The pictures shown in this document may differ from the original.

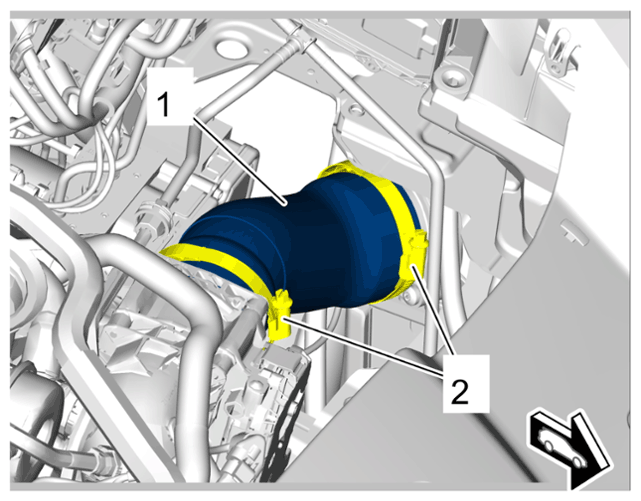

1. Remove pressure hose -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure hose

   1. 1.1 Loosen screw-type clamps -2-  and remove pressure hose -1-  .
2. For V6 turbo engines only:

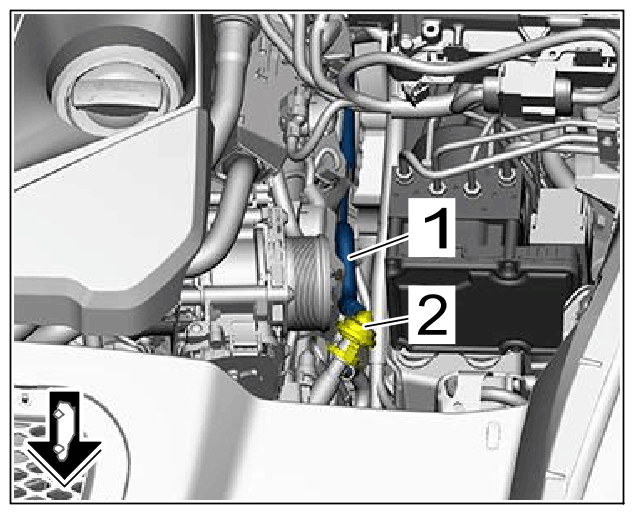

   Disconnect vacuum line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum line

   1. 2.1 Release and pull off quick-connecting lock of the vacuum line -2-  .
   2. 2.2 Hang vacuum line -1-  to the side.

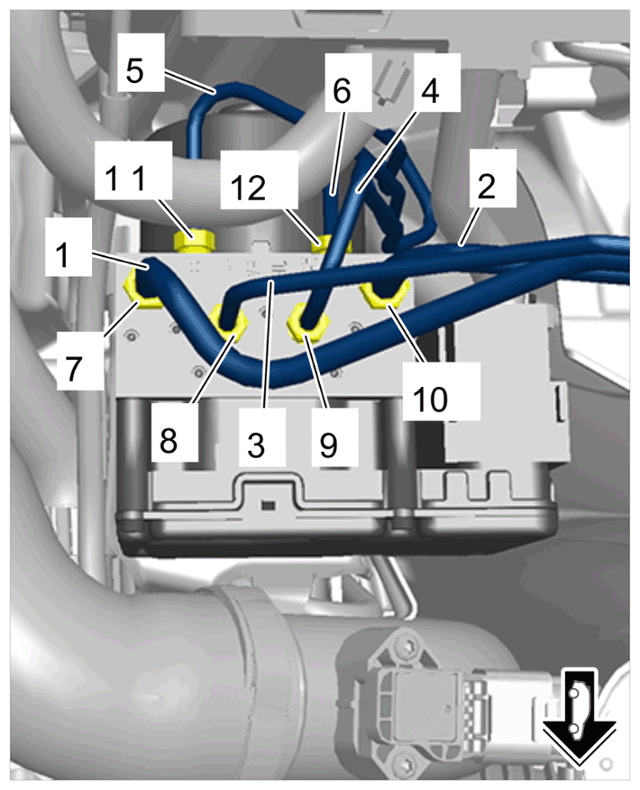

3. Loosen brake lines -1 to 6-  on the hydraulic unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake lines on hydraulic unit

   1. 3.1 Unscrew union nuts -7 to 12-  .
   2. 3.2 Disconnect brake lines -1 to 6-  from hydraulic unit.
   3. 3.3 Soak up escaping brake fluid using cloths and close off line connections using suitable stoppers.
   4. 3.4 Set brake lines -1 to 6-  aside.

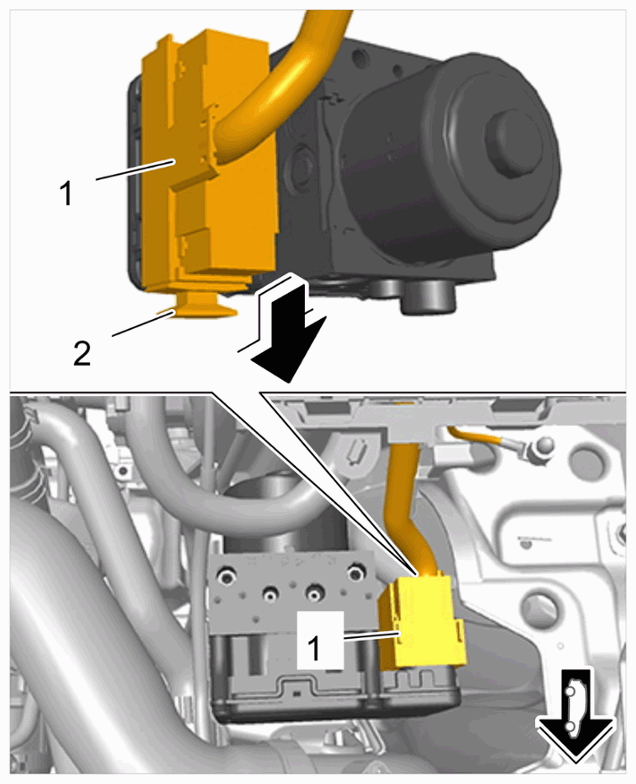

4. Release and disconnect electric plug connection for hydraulic unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for hydraulic unit

   1. 4.1 Unlock lock -2-  on cable plug -1-  in -direction of arrow-  .
   2. 4.2 Pull cable plug off hydraulic unit -1-  .

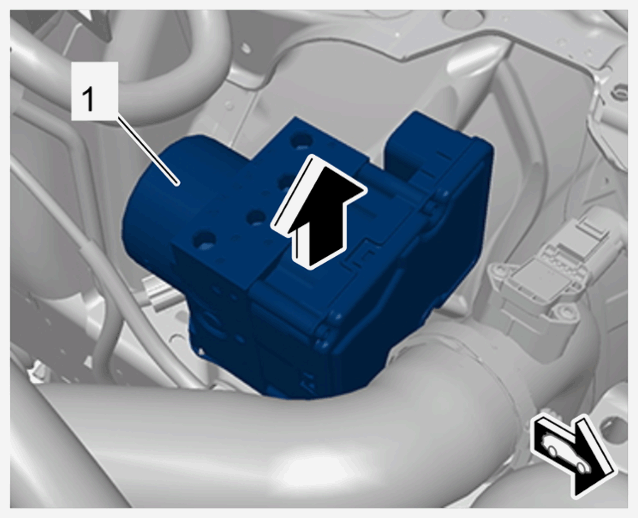

5. Remove hydraulic unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic unit

   1. 5.1 Pull hydraulic unit -1-  and holder up and off together -Arrow-  .
   2. 5.2 Guide hydraulic unit -1-  out of the vehicle.
