Installing Hydraulic Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

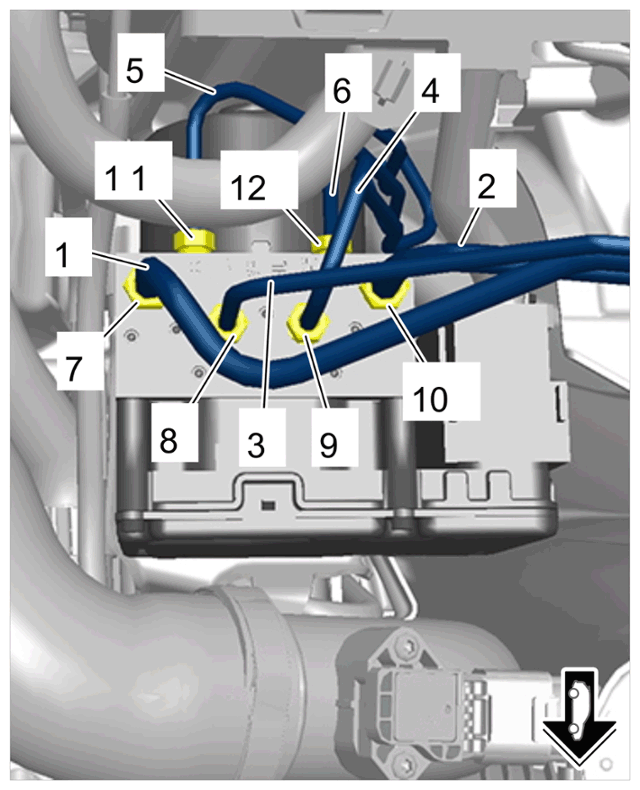

Brake lines on hydraulic unit

1. 1.1 Only for left-hand drive vehicles:

   Tighten union nuts securing brake lines to hydraulic unit -7 to 12-  .

   > Tightening - torque 14 Nm (10.5 ftlb.)

2. 1.2 Only for right-hand drive vehicles:

   Tighten union nuts securing brake lines to hydraulic unit (hydraulic unit to brake calliper) -7 to 10-  :

   > Tightening - torque 14 Nm (10.5 ftlb.)

3. 1.3 Only for right-hand drive vehicles:

   Tighten union nuts securing brake lines to hydraulic unit (brake master cylinder to hydraulic unit) -8 and 9-  and -11 and 12-  :

   > Tightening - torque 18 Nm (13 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

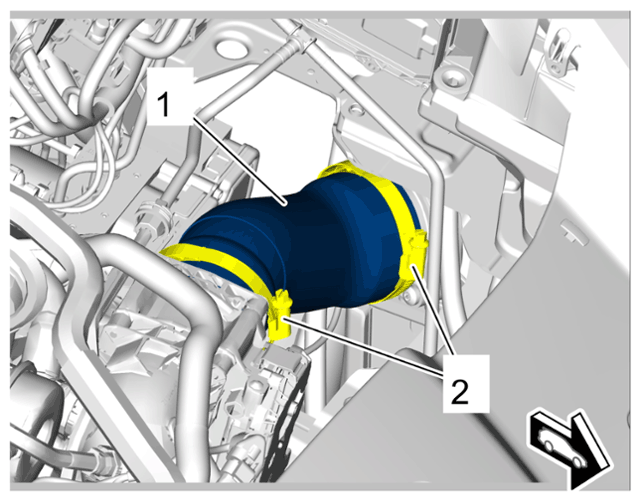

Pressure hose

1. 2.1 Insert pressure hose -1-  on both sides and tighten screw clamps -2-  .

   > Tightening - torque 5.5 Nm (4 ftlb.)
