Removing Rear Speed Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove rear speed sensor -1-  .

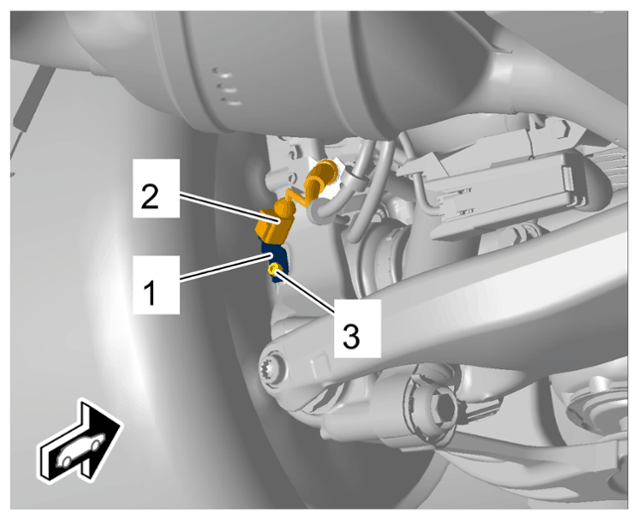

    G15154124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear speed sensor

    1. 1.1 Release and disconnect cable plug for rear speed sensor -2-  .
    2. 1.2 Unscrew screw on rear speed sensor -3-  .
    3. 1.3 Pull off rear speed sensor -1-  .
  2. Clean the speed sensor in the installation area if re-installing.
