Installing Front Speed Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Install front speed sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

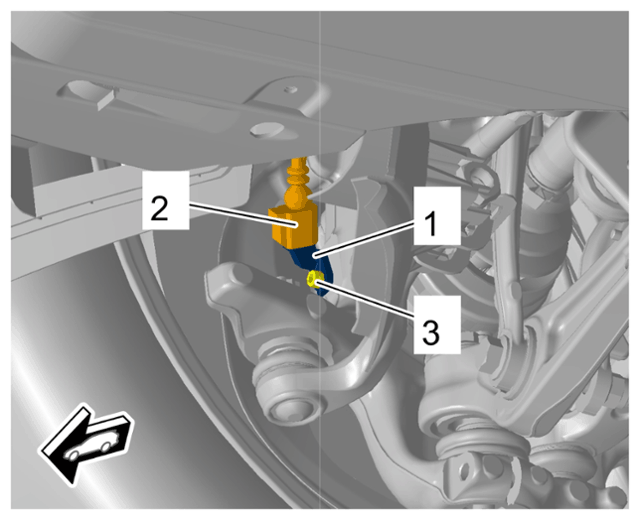

Front speed sensor
1. 1.1 Grease speed sensors in the installation area -1- (grease is available via spare parts catalogue).
2. 1.2 Insert front speed sensor -1- .
3. 1.3 Fit and tighten front speed sensor -3- .
  > Tightening - torque 8 Nm (6 ftlb.)
4. 1.4 Connect and lock cable plug for front speed sensor -2- , check secure fit.
