Removing Pressure Accumulator

Information

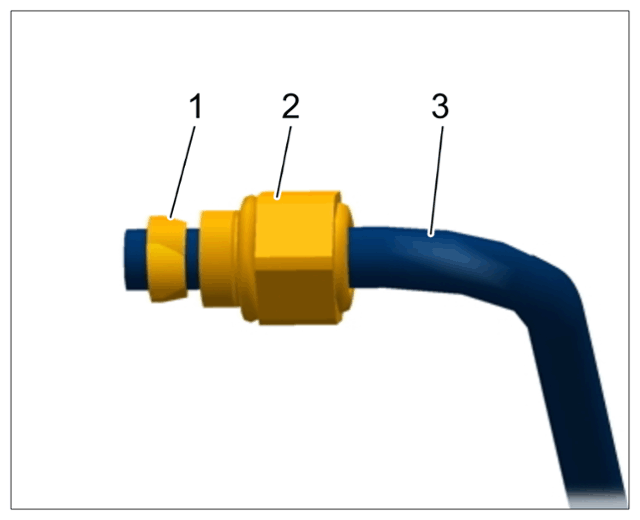

The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

1. Loosen pressure accumulator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

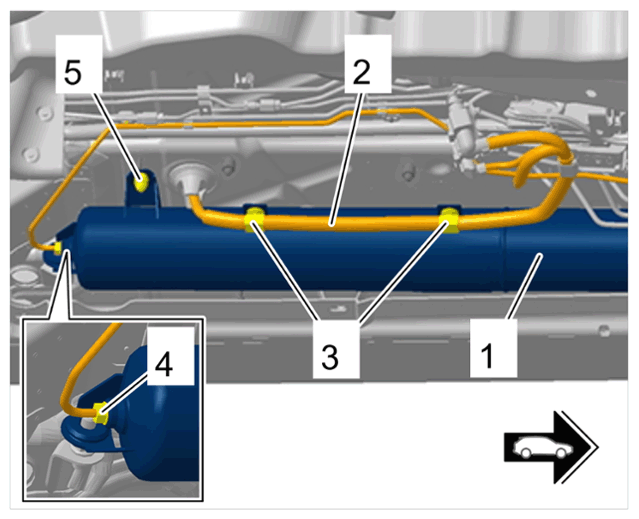

   Mounting for pressure accumulator

   1. 1.1 Unclip electric wiring harness -2-  from clips -3-  and move it aside.
   2. 1.2 Unscrew air line -4-  and move it aside.
   3. 1.3 Unscrew nut -5-  .
2. Remove pressure accumulator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

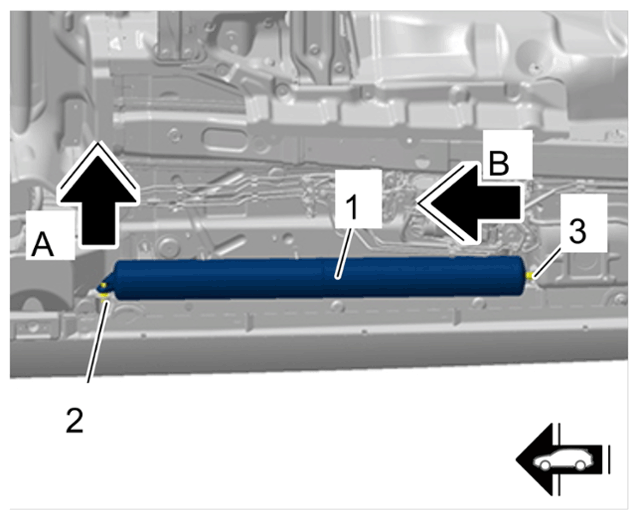

   Pressure accumulator

   1. 2.1 Pull pressure accumulator -1-  in -direction of arrow A-  off retaining pins -2-  .
   2. 2.2 Pull pressure accumulator -1-  in -direction of arrow B-  off retaining pins -3-  and remove it.
