Adding Oil For Transfer Box

Information

Use only oil approved by Porsche.

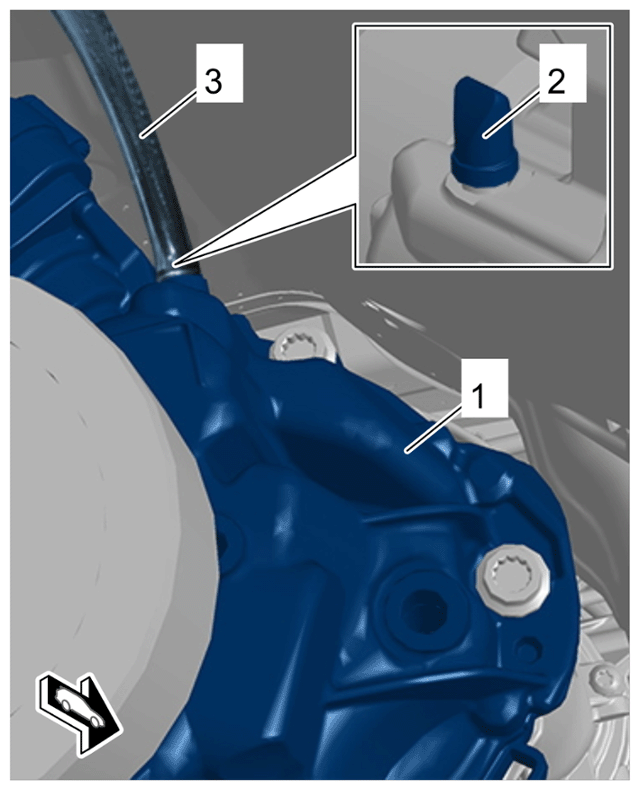

1. Fill 500 ml.  of oil into the transfer box -1-  .
   1. 1.1  Remove protection cap on breather adapter -2-  .
   2. 1.2  Connect hose -3-  of the > VAS 6563 - transmission fluid filler pump set  /ATF  to the breather adapter.
   3. 1.3  Fill in oil slowly and evenly using the filler pump.
   4. 1.4  Disconnect hose -3-  and fit protection cap on the breather adapter -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adding oil for transfer box

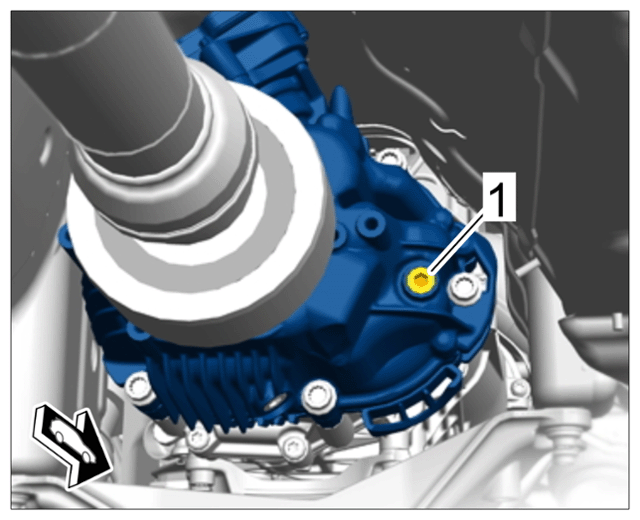

2. Fit and tighten new inspection screw and filler plug

   > Tightening - torque 20 Nm (15 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Filler plug on transfer box
