Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove cover for centre underbody.
> WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY
Remove transmission support -9- .
1. 2.1 Support the transmission using > VAS 6931 - engine and gearbox jack .
2. 2.2 Loosen and unscrew nuts -1- and screws -2- .
3. 2.3 Remove transmission support -9- .

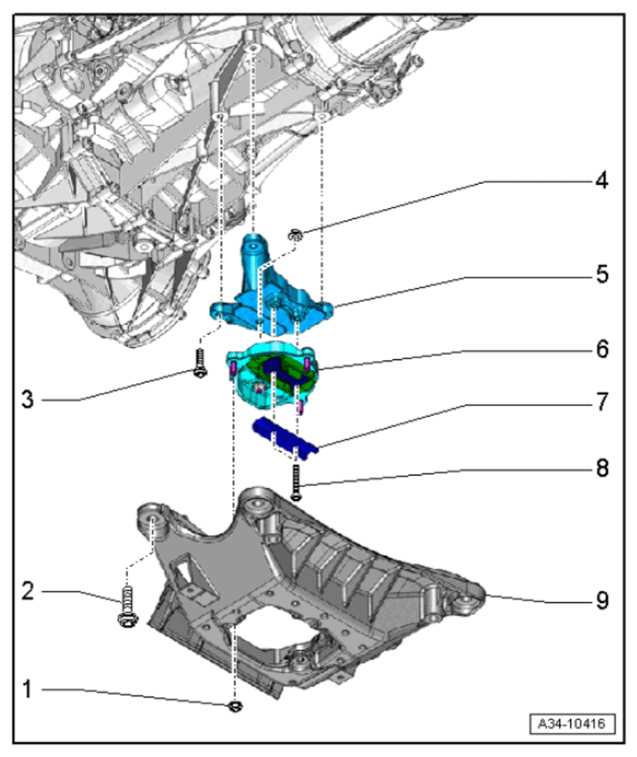

  Fig 1: Transmission Bracket Component Location
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Transmission bracket
