Installing Right Halfshaft Flange
WARNING: This page is about a different variant/trim than selected.

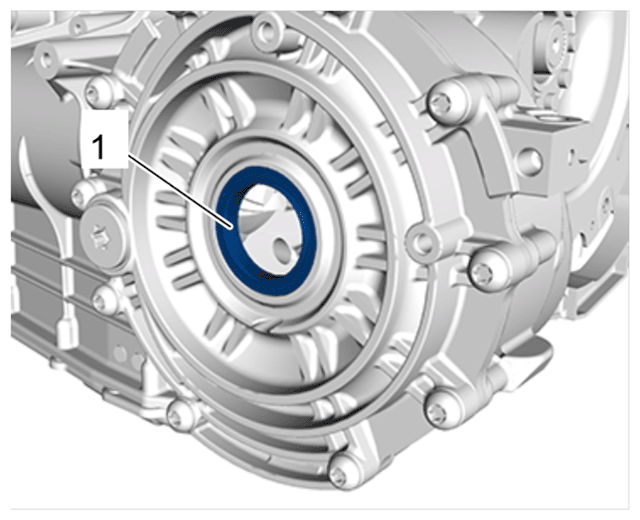

- Check sealing ring on front right halfshaft flange -1-
for damage.
Sealing ring on front right halfshaft flange
- 1.1
If the sealing ring is damaged, replace the sealing ring on the front right halfshaft flange -1-
.
> 395955 - REPLACING SEALING RING FOR FRONT HALFSHAFT FLANGE
- 1.2 Half-fill the space between the sealing and dust lips with sealing grease.
- 1.1
If the sealing ring is damaged, replace the sealing ring on the front right halfshaft flange -1-
.

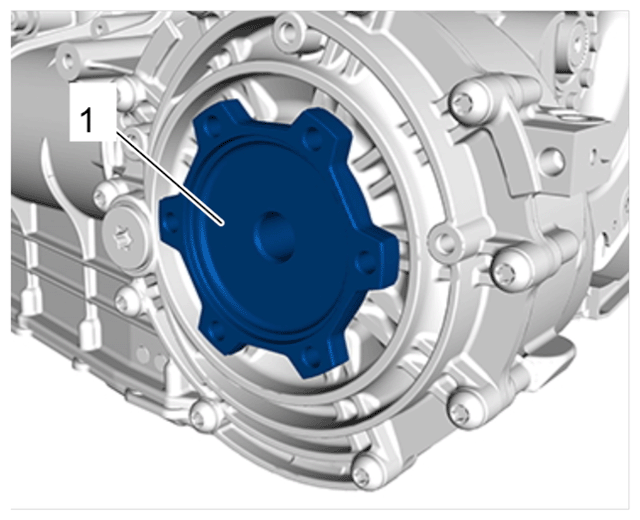

- Install right halfshaft flange -1-
.
Right halfshaft flange
- 2.1 Carefully guide in right halfshaft flange -1- .
- 2.2 Tap in right halfshaft flange using > VW295 - drift .
