Removing Steering Wheel

WARNING: This page is about a different variant/trim than selected.
  1. Turn wheels to straight-ahead position.
  2. Disconnect electric plug connections at the steering wheel.

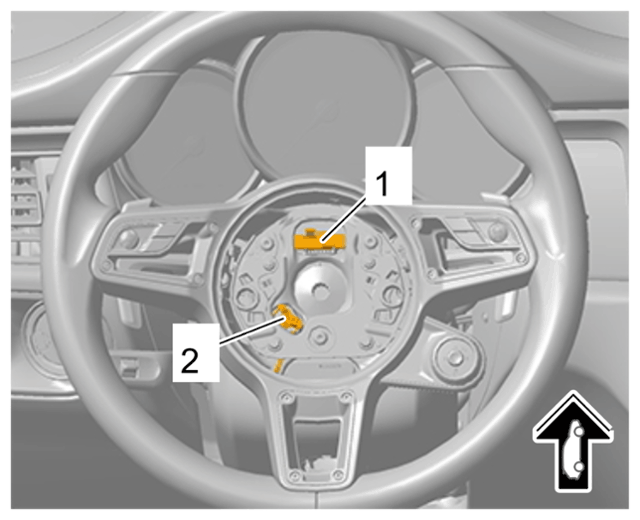

    G15155487Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

    1. 2.1 Release and disconnect electric plug connection for airbag wiring harness -1-  .
    2. 2.2 If the vehicle has a heated steering wheel  : Release and disconnect electric plug connection for heated steering wheel -2-  .
  3. Unscrew screw -1-  .

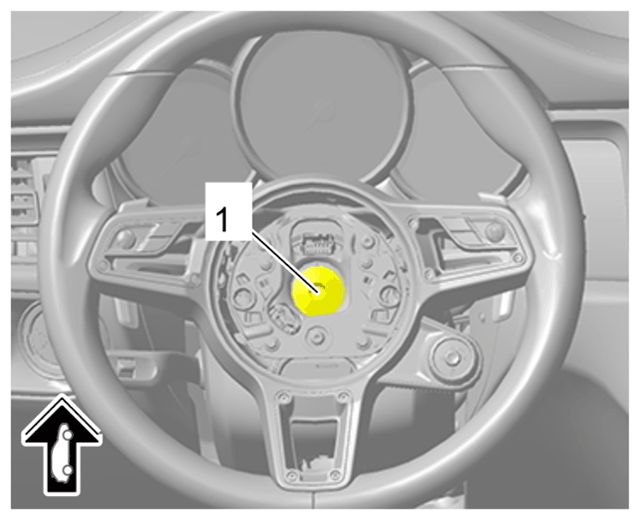

    G15155488Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering wheel

  4. Remove steering wheel.
