Adjusting Shift Forks And Gear Actuators: Notes
WARNING: This page is about a different variant/trim than selected.
Information
- Do not touch plug contacts in the connector for the transmission with your hands.
- When prising out the tappets, do not use the sensors for support.
Adjusting shift forks:
Every shift fork has 3 positions:
Shift forks
- Gear engaged -G-
- Idle speed -N- (centre position)
- Gear engaged -G-
Information
- Before installing the control mechanism for transmission, move shift forks and gear actuators into centre position.

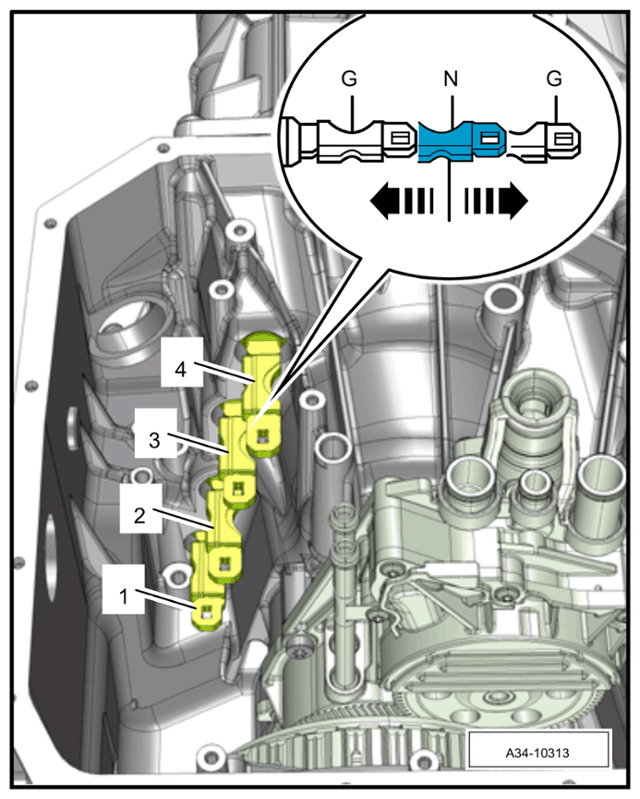

- Adjust the shift forks -1 to 4-
.
Shift forks
- 1.1 Check shift positions of shift forks -1 to 4- manually.
- 1.2 Shift each of the four shift forks to each position once one after the other -Arrows- .
- 1.3
Move all shift forks back to centre position.
Information
- Before installing the control mechanism for transmission, move shift forks and gear actuators into centre position.
- Adjust gear actuators.
Shift forks
- Dimension -a- = 33.5 mm

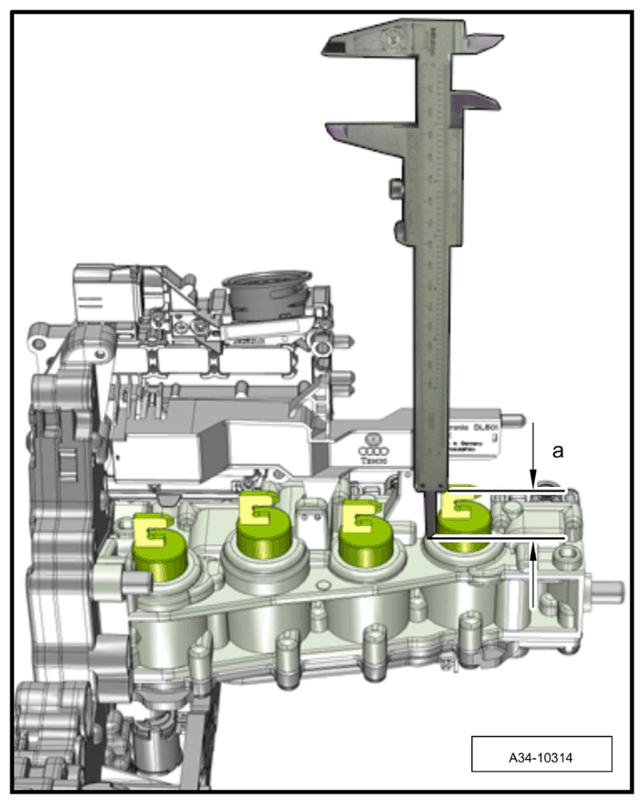

- 2.1 Adjust the four gear actuators on the back of the control mechanism for transmission to centre position with the dimension -a- .

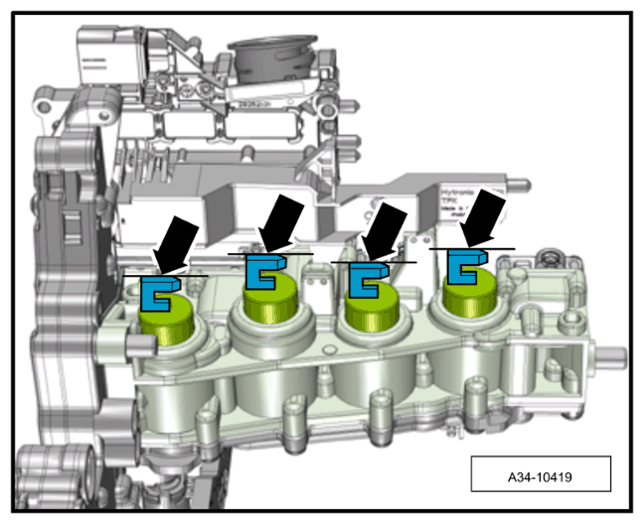

- Align drivers -Arrows-
for the gear actuators so that they engage in the eyes on the shift forks during installation.
Shift forks
