Installing Atf Cooling Line (Front Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

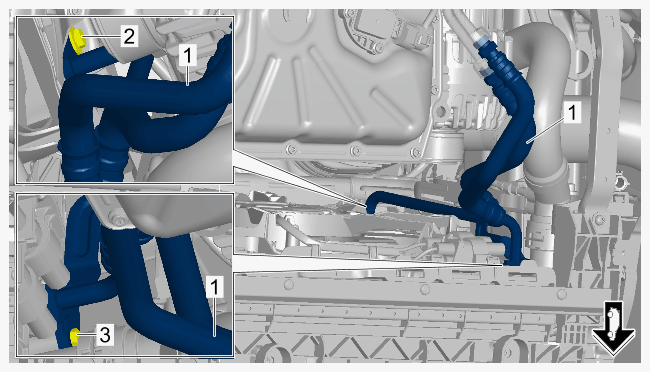

ATF cooling line - front section

1. 1.1  Fit front section of ATF cooling line
2. 1.2  Screw in and tighten screws on the ATF cooling line -2 and 3-  .

   > Tightening - torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

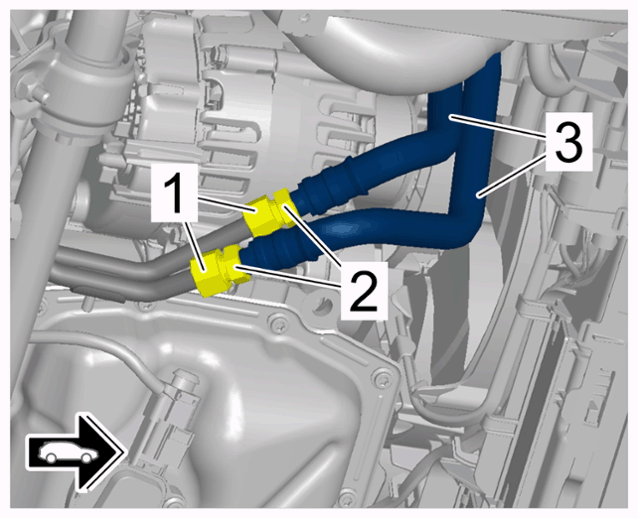

Connection point for the ATF cooling line

1. 2.1  Fit front sections -3-  on rear section.
2. 2.2  Screw on and tighten union nuts -1-  and counter at the hexagon -2-  at the same time.

   > Tightening - torque 29 Nm (21 ftlb.)
