Removing Wire Harness

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew screws securing wire harness -1-  .

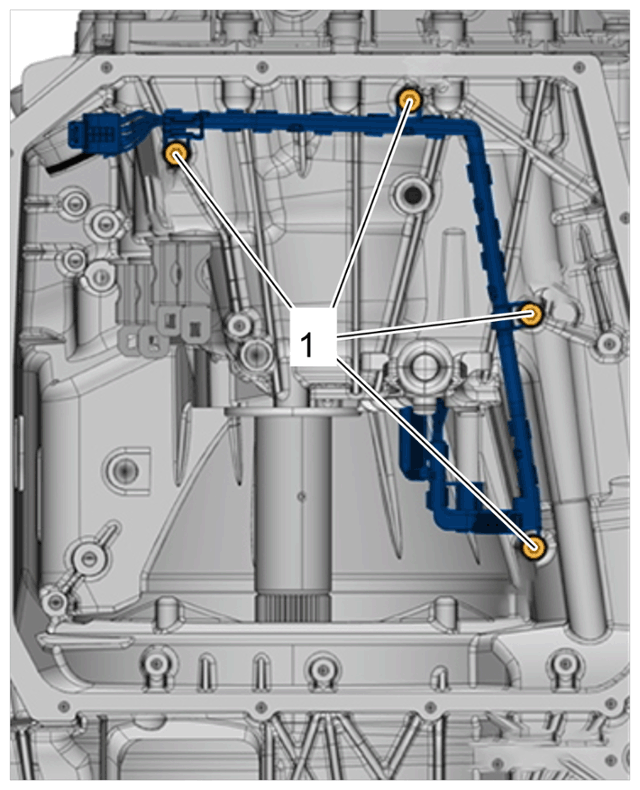

    G15152862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper screws securing wire harness

  2. Remove wire harness -1-  .

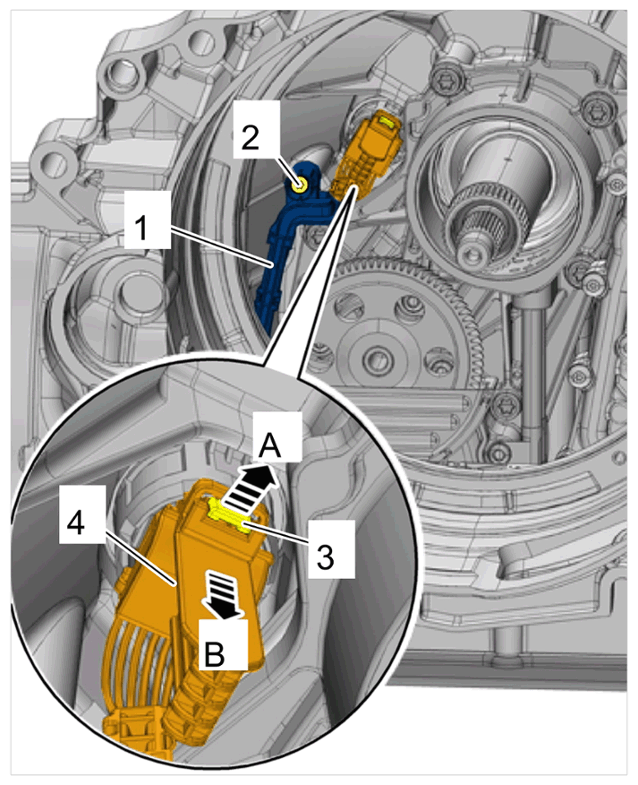

    G15152863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electrical plug connections for wire harness

    1. 2.1  Remove screw -2-  .
    2. 2.2  Pull locking mechanism -3-  on the electrical plug connections -4-  in -direction of arrow A-  to release, and disconnect the electrical plug connections by pulling -4-  in -direction of arrow B-  .
    3. 2.3  Remove wire harness -1-  from double clutch transmission.
